This page contains information about the states that high-level components of the CPN system can be in. Your integration should be able to handle and respond to each of the various states that a given component may present. In some cases, the state of a component requires immediate or rapid action from an OFI. Reference these states as a way to confirm your integration is comprehensive.
A payment represents the end-to-end CPN payment flow, including the onchain transaction and RFI check. It is initiated by locking in a quote and providing the required recipient details.

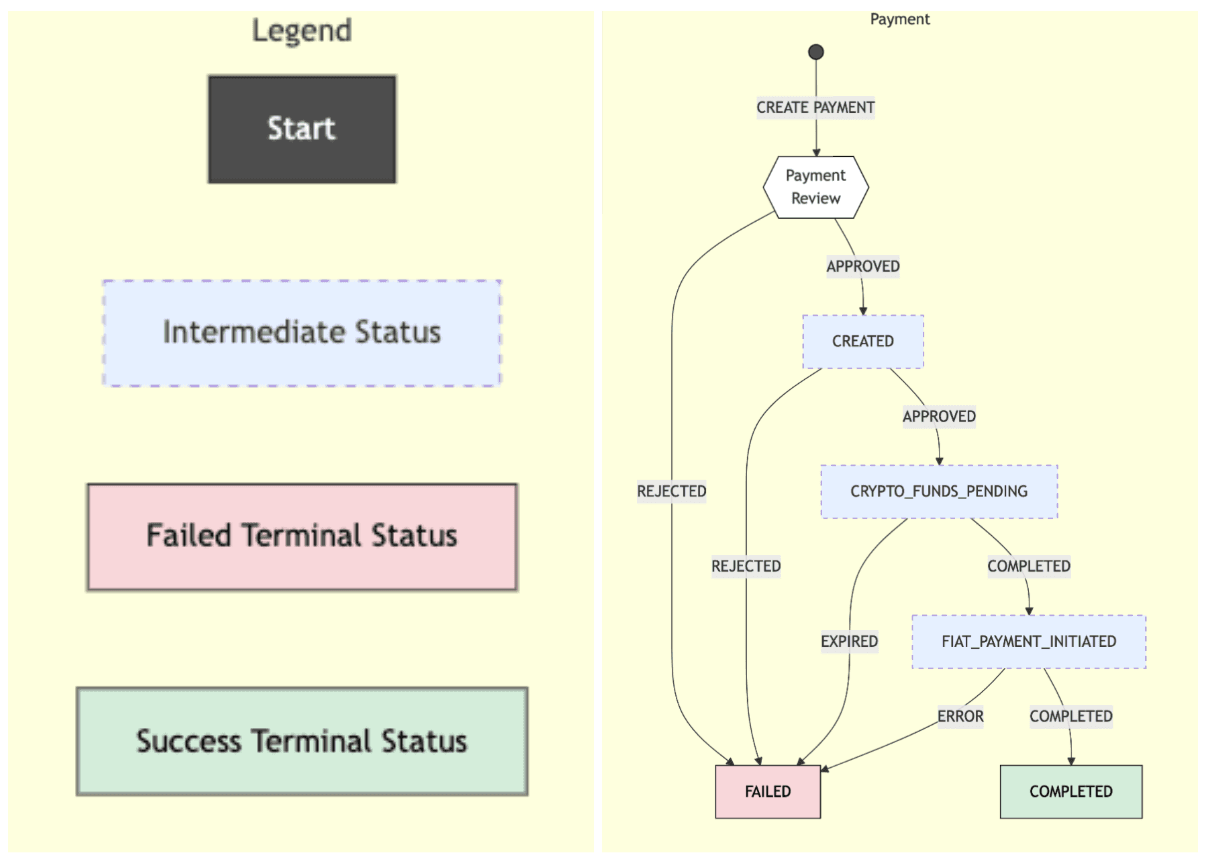

Payments have the following workflow:
| State | Description |
|---|---|
CREATED | A quote has been accepted and the payment is initialized. When a payment requires an RFI in the created state the RFI must be resolved before the payment can proceed. A payment can be in the created state without an associated RFI while the BFI completes its compliance check. This can take up to 1 business day to complete. |
CRYPTO_FUNDS_PENDING | The payment has passed a compliance check and is waiting for the onchain transaction of crypto. The OFI is required to complete the onchain transaction in order to proceed. |
FIAT_PAYMENT_INITIATED | The BFI has received and validated the crypto transfer and has initiated the fiat payment. |
COMPLETED | The BFI has completed the fiat transfer. Depending on the transfer method, the receiver may or may not have received the transfer. |
FAILED | The payment can't be completed. |
When a payment is initiated, the BFI performs an initial payment review, which affects the state that the payment is created in:
- If the BFI approves the initial payment review outright, the payment is
created in the
CRYPTO_FUNDS_PENDINGstate. - If the BFI rejects the initial payment review outright, the payment is created
in the
FAILEDstate. - If the BFI needs to take additional steps to review the payment, the payment
is created in the
CREATEDstate. Final approval or rejection of the payment is sent asynchronously.
Requests for information (RFI) is a process that is initiated by the BFI when more detailed information about the sender is required to meet regulatory or risk compliance checks.

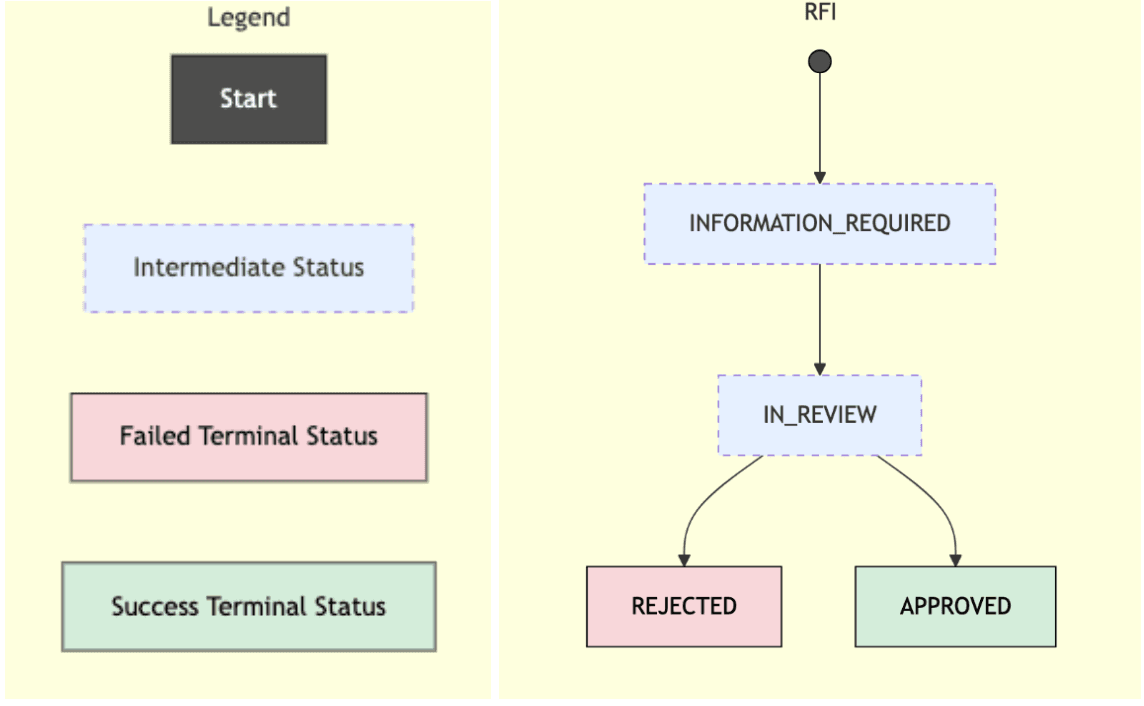

RFIs have the following workflow:
| State | Description |
|---|---|
INFORMATION_REQUIRED | Initial status. OFI is required to submit the requested data to resolve the RFI. |
IN_REVIEW | OFI has submitted the requested data and BFI is reviewing. |
APPROVED | BFI approves the additional information. |
FAILED | BFI rejects the additional information. This is a resolved state where the OFI can't resubmit additional information to the BFI. |
Refunds occur when the BFI can't complete the transfer of fiat to the receiver. The BFI creates an onchain transaction to transfer the cryptocurrency back to the OFI.

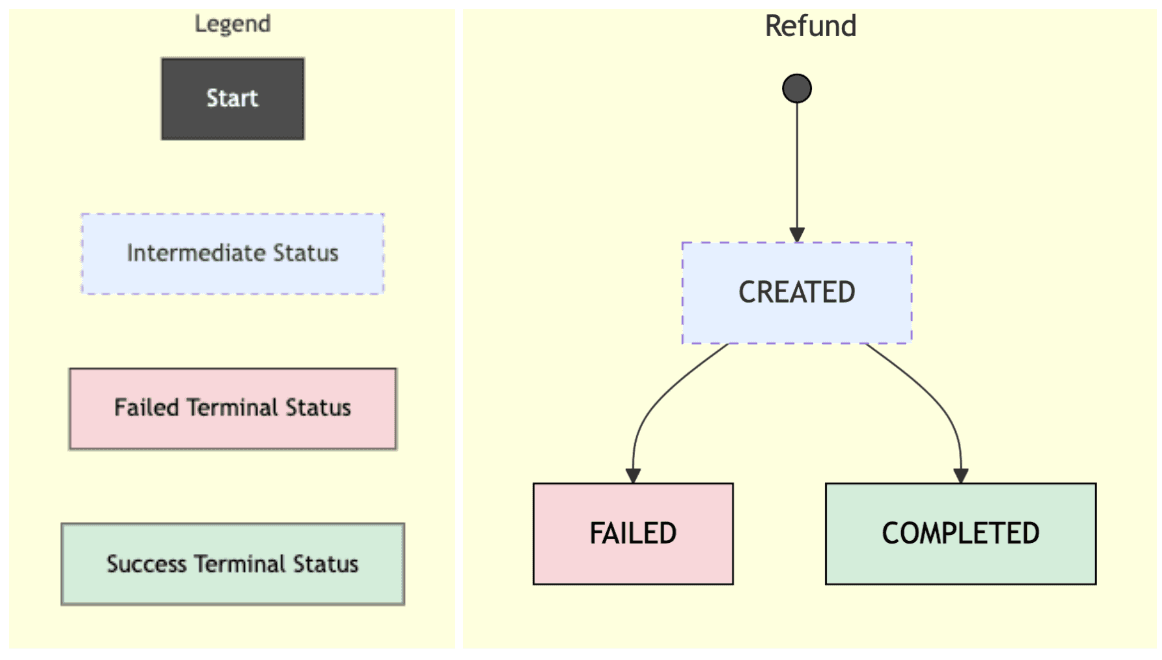

Refunds have the following workflow:
| State | Description |
|---|---|
CREATED | The refund is initialized but the onchain transaction has not been created yet. Some BFIs may skip this status and create the refund directly into the COMPLETED or FAILED state. |
FAILED | The onchain transaction failed. |
COMPLETED | The onchain transaction was successfully broadcast and confirmed by the BFI. The transaction hash is available. |
A transaction on CPN is a data object that represents a funds transfer
transaction on the blockchain. When the payment is in the CRYPTO_FUNDS_PENDING
state, the OFI should initiate the onchain transaction with CPN as soon as
possible.

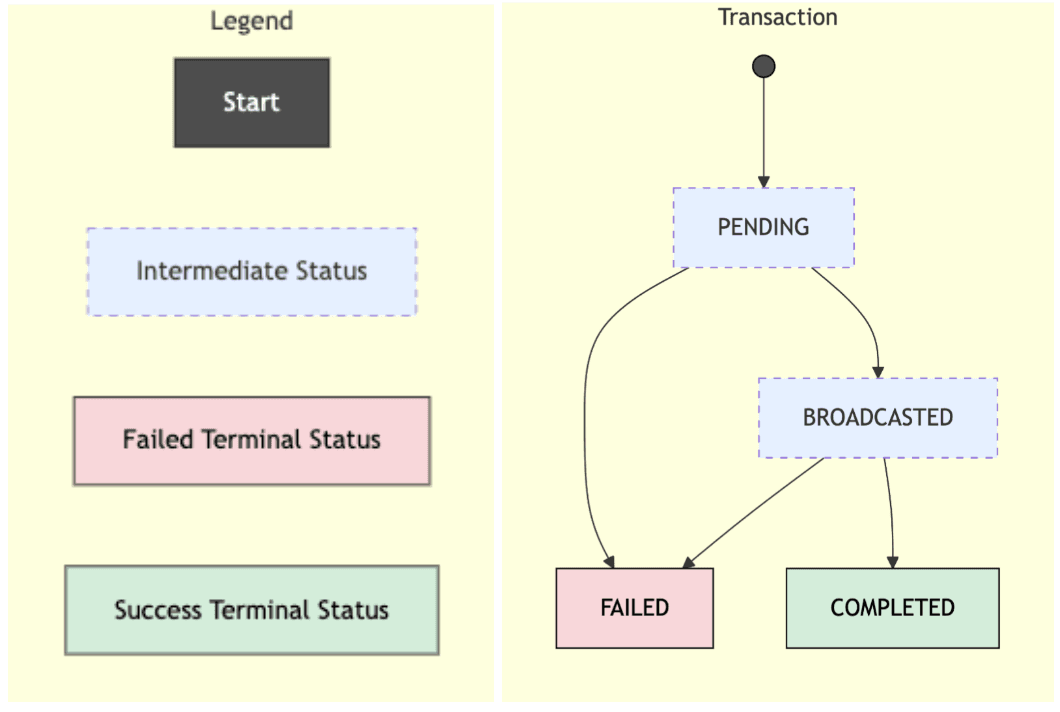

Transactions have the following workflow:
| State | Description |
|---|---|
CREATED | Transaction has been created and the payload returned to the caller, awaiting signature. |
PENDING | OFI has submitted the signed transaction. The transaction is pending broadcast to the blockchain. |
BROADCASTED | The signed transaction has been broadcast to the blockchain. |
COMPLETED | The transaction is confirmed onchain. |
FAILED | The transaction can't be completed. |

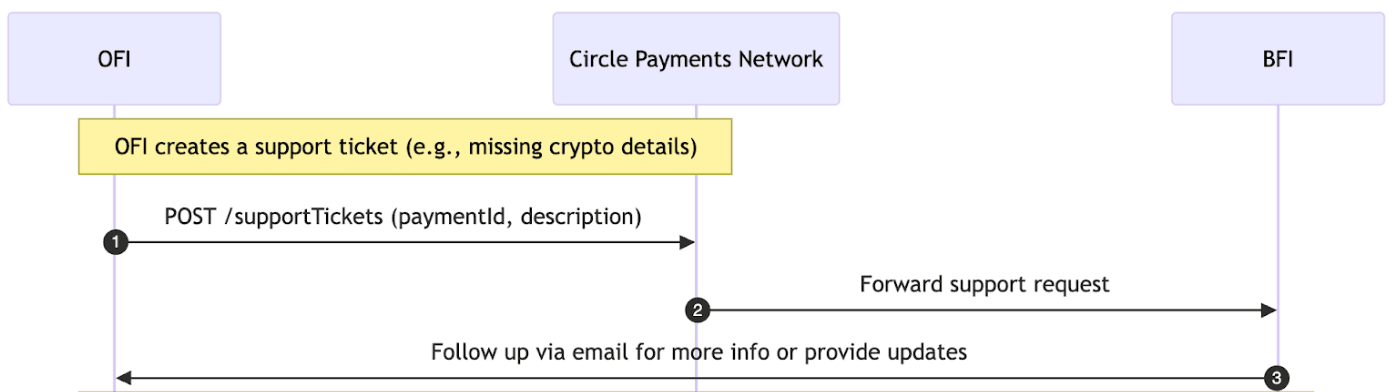

The CPN support tickets API allows you to raise and manage transaction-related issues such as settlement delays, missing information, or refunds. These tickets are stored in the CPN platform and routed to the appropriate party for resolution.
