USDC provides the ability to transfer US dollars over public blockchains using smart contracts. The smart contract allows users to send, receive, and store dollars onchain with a wallet. Here’s a quickstart guide for developers to build a web app to perform their first USDC transfer on Sui.

​
Prerequisites

Before you start building the sample app to perform a USDC transfer, make sure you meet the following prerequisites:
  • Node.js and npm: Make sure that you have Node.js and npm installed on your machine. You can download and install Node.js from nodejs.org. npm comes with Node.js.
  • Sui Wallet: Install the Sui Wallet browser extension and set up your wallet. Make sure that your wallet is funded with:
    • Some SUI testnet tokens to cover transaction fees.
    • USDC tokens for the transfer. (USDC Testnet Faucet)

​
Contract Addresses

You will need the following contract addresses:

​
Installation

Perform the following installation and setup steps:
  1. Project Setup: Create a new project directory and initialize it with npm:
Shell
npx create-next-app@latest usdc-transfer-app
  1. When prompted, choose the following options:
    • Use TypeScript: Yes
    • Use ESLint: Yes
    • Use Tailwind CSS: Yes
    • Use src/ directory: Yes
    • Use App Router: Yes
    • Customize the default import alias: No
  2. Navigate to the project directory:
Shell
cd usdc-transfer-app
  1. Install additional dependencies:
Shell
npm install @mysten/dapp-kit @mysten/sui @mysten/wallet-kit @tanstack/react-query

​
Import Code and Setup

  1. The code provided will be updated in the src/app/page.tsx file. This section imports necessary libraries and sets up the network configuration.
TypeScript
"use client";
import { useState, useEffect } from "react";
import {
  ConnectButton,
  useWalletKit,
  WalletKitProvider,
} from "@mysten/wallet-kit";
import { SuiClientProvider, useSuiClient } from "@mysten/dapp-kit";
import { QueryClient, QueryClientProvider } from "@tanstack/react-query";
import { TransactionBlock } from "@mysten/sui.js/transactions";

// Define the network we're connecting to (testnet in this case)
const networks = {
  testnet: { url: "https://fullnode.testnet.sui.io:443" },
};

// Create a new QueryClient for managing and caching asynchronous queries
const queryClient = new QueryClient();
This component handles the main functionality of the application, including wallet connection token definition, and token transfer. a. Define USDC testnet token contract
TypeScript
// Define the USDC token type on Sui testnet
// This is the unique identifier for the USDC token on Sui
const USDC_TYPE =
  "0xa1ec7fc00a6f40db9693ad1415d0c193ad3906494428cf252621037bd7117e29::usdc::USDC";
b. State Management Define state variables to manage the connection status, amount, recipient address, and transaction status.
TypeScript
function HomeContent() {
  // Use the wallet kit to get the current account and transaction signing function
  const { currentAccount, signAndExecuteTransactionBlock } = useWalletKit();
  // Get the Sui client for interacting with the Sui network
  const suiClient = useSuiClient();
  const [connected, setConnected] = useState(false);
  const [amount, setAmount] = useState('');
  const [recipientAddress, setRecipientAddress] = useState('');
  const [txStatus, setTxStatus] = useState('');
c. Effect Hook for Connection Status Use useEffect() to update the connection status whenever the currentAccount changes.
TypeScript
// Update the connection status when the current account changes
useEffect(() => {
  setConnected(!!currentAccount);
}, [currentAccount]);
d. Token Sending Logic Define the function to handle sending tokens, including validation and transaction execution.
TypeScript
const handleSendTokens = async () => {
  if (!currentAccount || !amount || !recipientAddress) {
    setTxStatus("Please connect wallet and fill all fields");
    return;
  }
  try {
    // Fetch USDC coins owned by the current account
    // This uses the SuiClient to get coins of the specified type owned by the current address
    const { data: coins } = await suiClient.getCoins({
      owner: currentAccount.address,
      coinType: USDC_TYPE,
    });
    if (coins.length === 0) {
      setTxStatus("No USDC coins found in your wallet");
      return;
    }
    // Create a new transaction block
    // TransactionBlock is used to construct and execute transactions on Sui
    const tx = new TransactionBlock();
    // Split the coin and get a new coin with the specified amount
    // This creates a new coin object with the desired amount to be transferred
    const [coin] = tx.splitCoins(coins[0].coinObjectId, [
      tx.pure(BigInt(amount)),
    ]);
    // Transfer the split coin to the recipient
    // This adds a transfer operation to the transaction block
    tx.transferObjects([coin], tx.pure(recipientAddress));
    // Sign and execute the transaction block
    // This sends the transaction to the network and waits for it to be executed
    const result = await signAndExecuteTransactionBlock({
      transactionBlock: tx,
    });
    console.log("Transaction result:", result);
    setTxStatus(`Transaction successful. Digest: ${result.digest}`);
  } catch (error) {
    console.error("Error sending tokens:", error);
    setTxStatus(
      `Error: ${error instanceof Error ? error.message : "Unknown error"}`,
    );
  }
};
e. Rendering the UI Render the main UI components, including input fields for amount and recipient address, and a button to send tokens.
TypeScript
   return (
    <main className="flex min-h-screen flex-col items-center justify-center p-24">
      <div className="z-10 w-full max-w-5xl items-center justify-between font-mono text-sm">
        <h1 className="text-4xl font-bold mb-8">Sui USDC Sender (Testnet)</h1>
        <ConnectButton />
        {connected && currentAccount && (
          <p className="mt-4">Connected: {currentAccount.address}</p>
        )}
        <div className="mt-8">
          <input
            type="text"
            placeholder="Amount (in USDC)"
            value={amount}
            onChange={(e) => setAmount(e.target.value)}
            className="p-2 border rounded mr-2 text-black"
          />
          <input
            type="text"
            placeholder="Recipient Address"
            value={recipientAddress}
            onChange={(e) => setRecipientAddress(e.target.value)}
            className="p-2 border rounded mr-2 text-black"
          />
          <button
            onClick={handleSendTokens}
            disabled={!connected}
            className={`p-2 rounded ${
              connected && amount && recipientAddress
                ? 'bg-blue-200 text-black hover:bg-blue-300'
                : 'bg-gray-300 text-gray-500'
            } transition-colors duration-200`}
          >
            Send USDC
          </button>
        </div>
        {txStatus && <p className="mt-4">{txStatus}</p>}
      </div>
    </main>
  );
}

​
Main Application Component

This component wraps the HomeContent() function with the necessary providers for state management and wallet connection.
TypeScript
export default function Home() {
  return (
    // Wrap the app with necessary providers
    // QueryClientProvider: Provides React Query context for managing async queries
    // SuiClientProvider: Provides the Sui client context for interacting with the Sui network
    // WalletKitProvider: Provides wallet connection and interaction capabilities
    <QueryClientProvider client={queryClient}>
      <SuiClientProvider networks={networks} defaultNetwork="testnet">
        <WalletKitProvider>
          <HomeContent />
        </WalletKitProvider>
      </SuiClientProvider>
    </QueryClientProvider>
  );
}
  1. Start the development server:
Shell
npm run dev
  1. Open http://localhost:3000 in your browser.

​
Connecting Your Wallet

  • On the USDC Token Sender app, click the “Connect Wallet” button.
  • Select your wallet from the list of available options.
  • Approve the connection in your wallet extension.

​
Performing a USDC Transfer

  • Ensure you have USDC tokens in your wallet. You can get testnet tokens from our faucet if needed.
  • Click the Request testnet SUI Tokens from your Sui Wallet to source gas tokens.
  • In the app, enter the amount of USDC you want to send and the recipient’s address.
  • Click the Send Tokens button.
  • Your wallet will prompt you to approve the transaction. Review the details and confirm.
  • Wait for the transaction to be processed. The app will display the transaction to status.

​

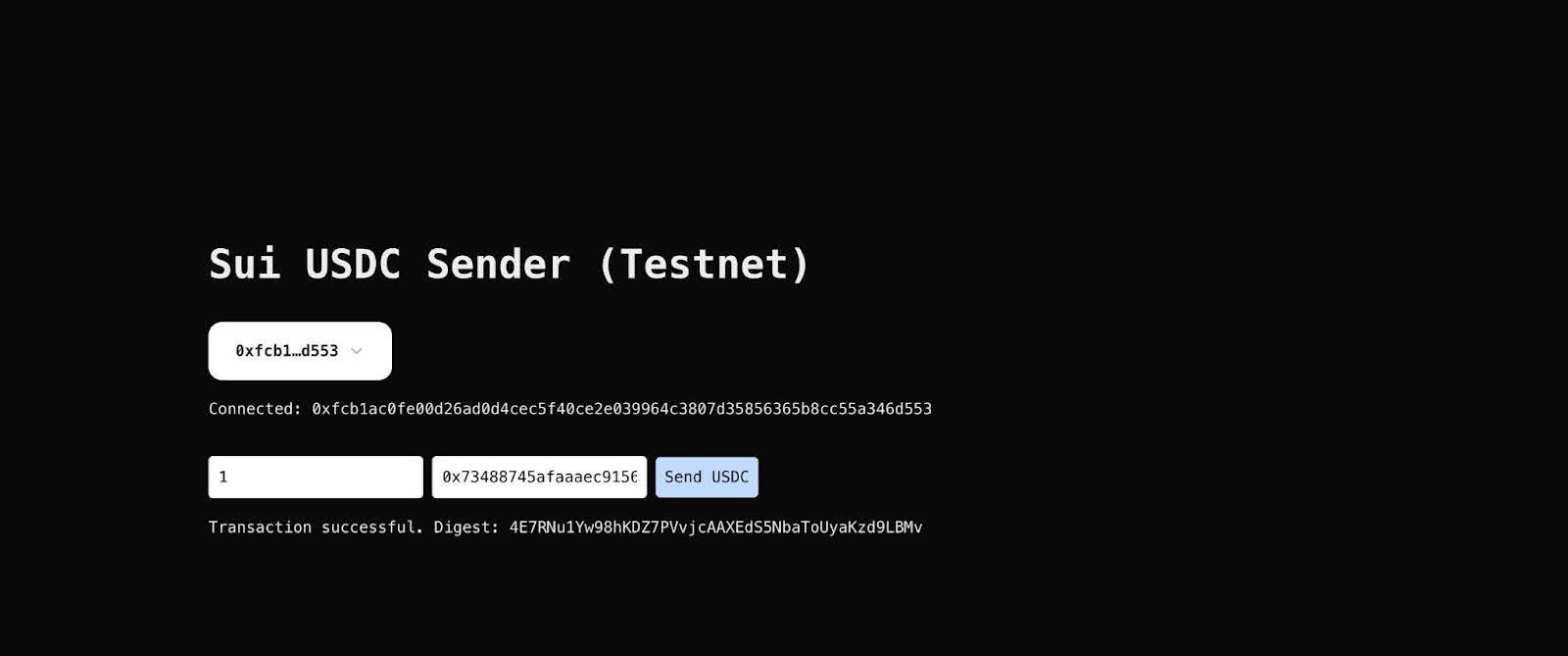

Sample App UI

​

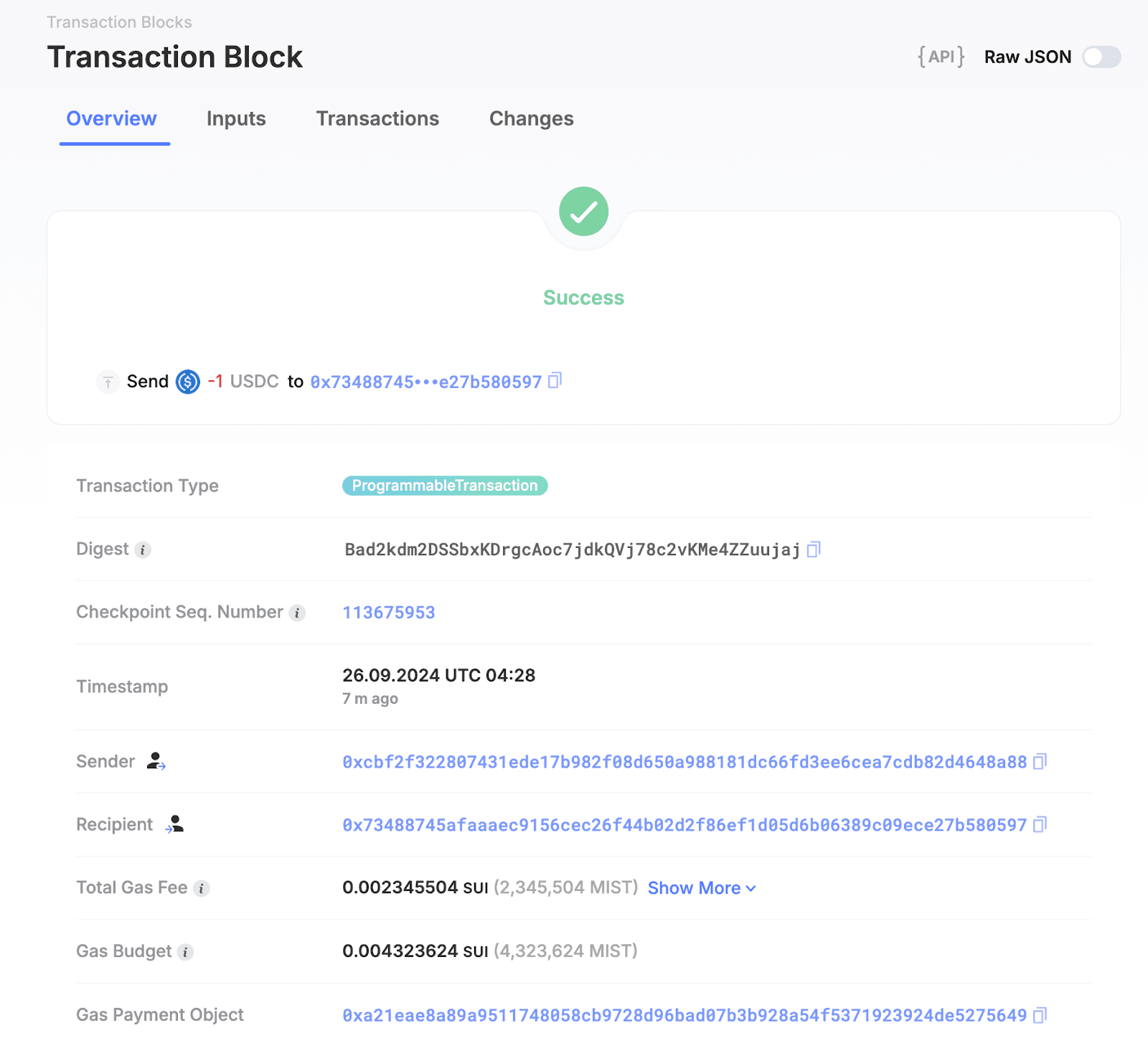

Successful Transaction

You can use the Sui Explorer to check the status of the transaction.
