iOS SDK UI Customization API

iOS SDK UI and key mapping reference for customizations.

This article describes two different ways to customize your iOS application using the iOS SDK:

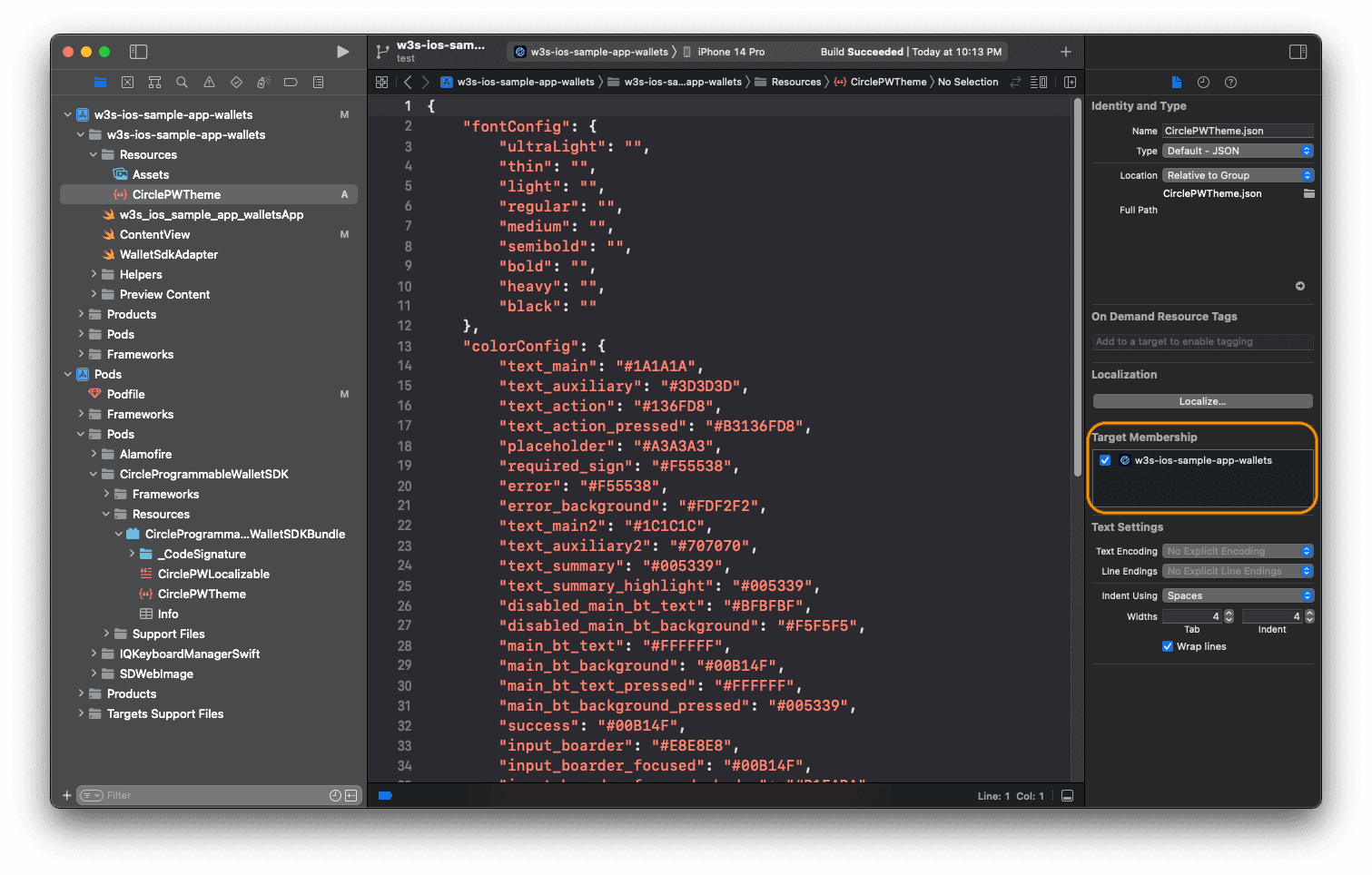

  • Static Resources customize the UI layout during build time.

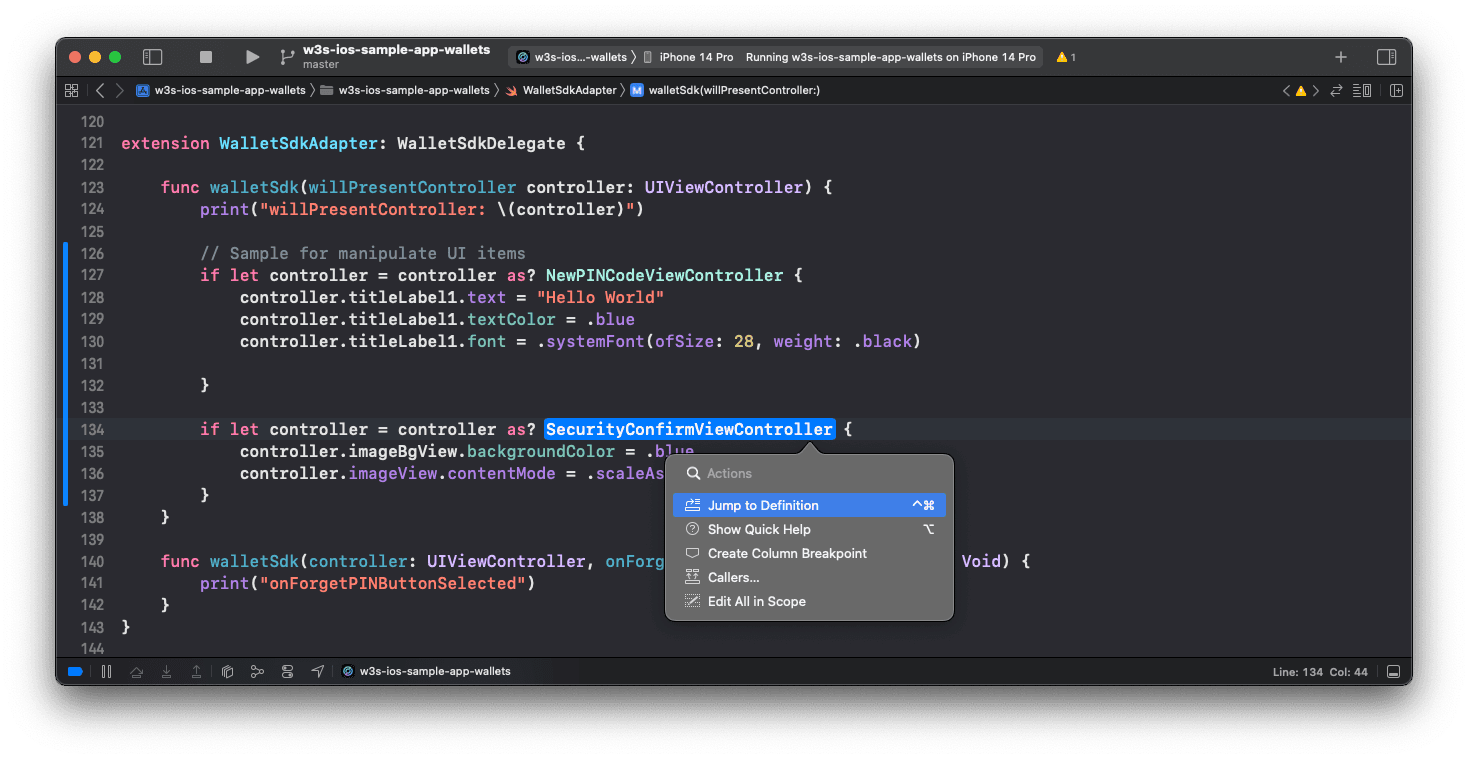

  • Programmatic Customization modifies the layout at run time.

To use the SDK in the most flexible way, combine the reference in this article with the iOS SDK.

Sample Application: Refer to the iOS sample application for example code.

Layouts

How to Use the Layout Images and Index Tables

This section includes screenshots of layouts for the SDK functionality. As you review the layouts, you can cross-reference the alphanumeric tags in the images with the values in the index tables that follow this section:

New PIN Code

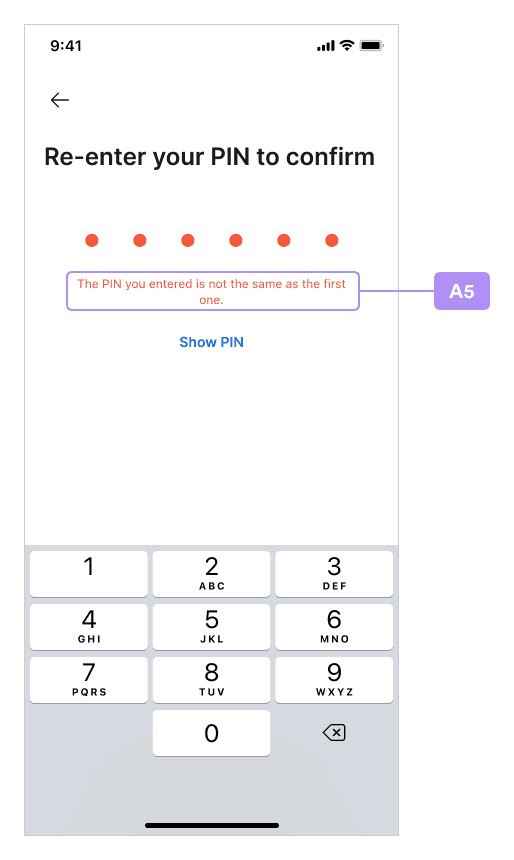

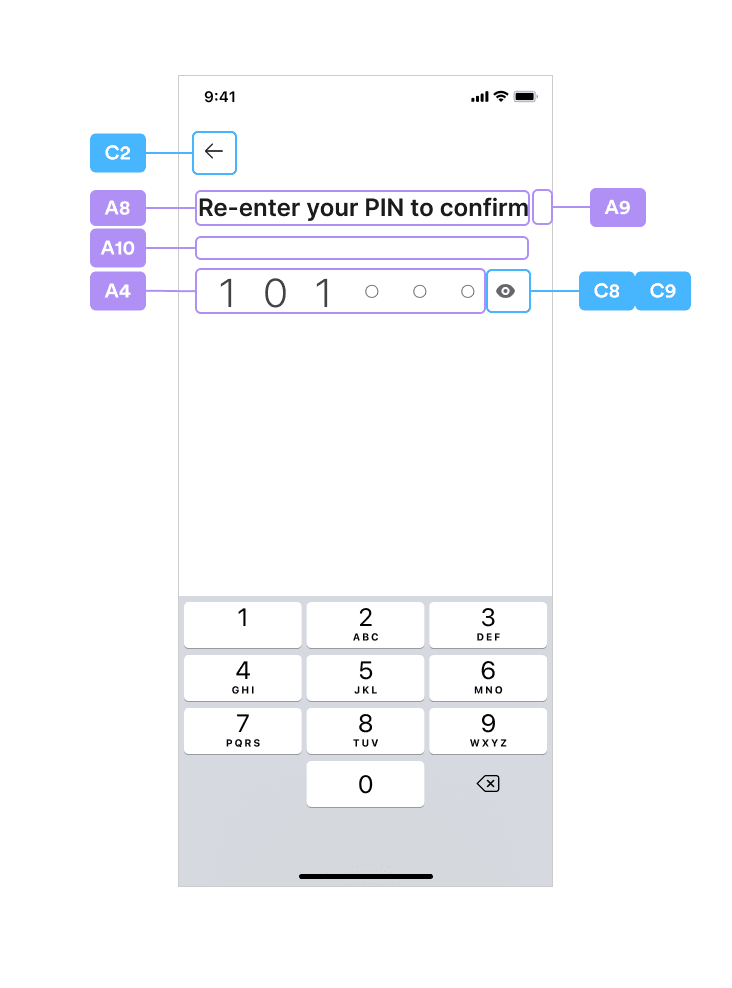

Confirm PIN Code

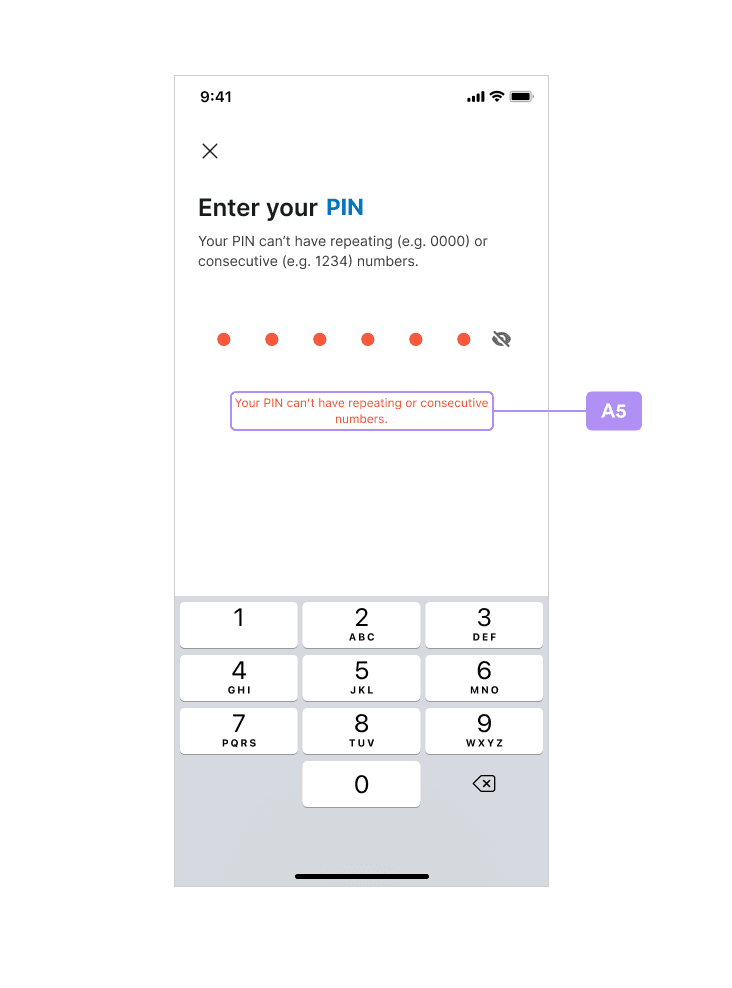

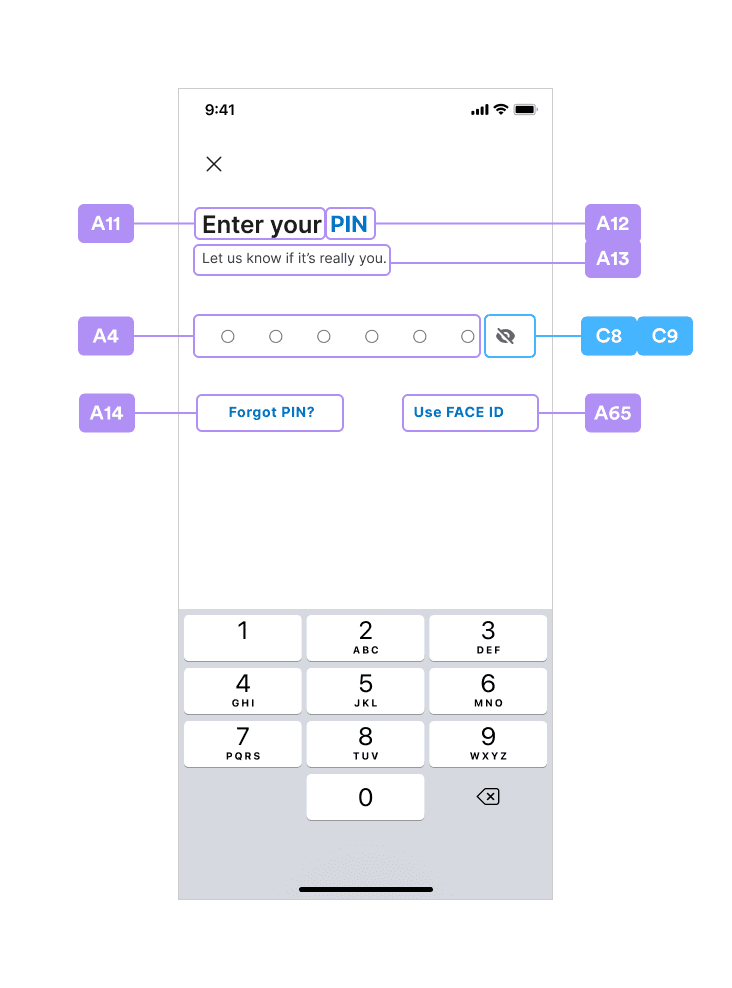

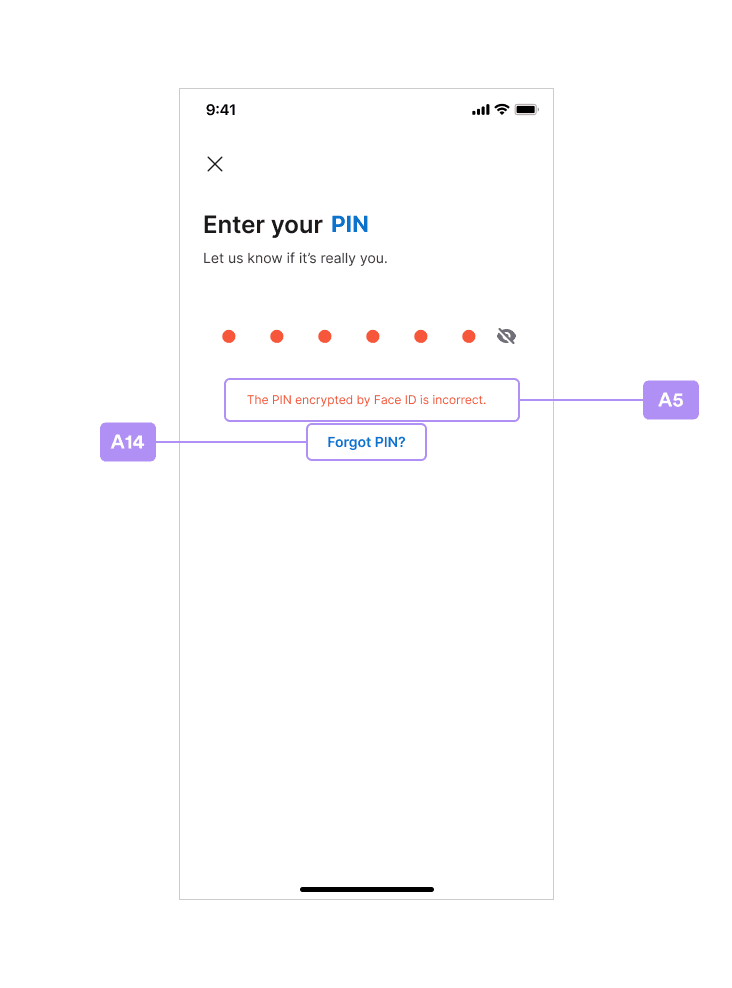

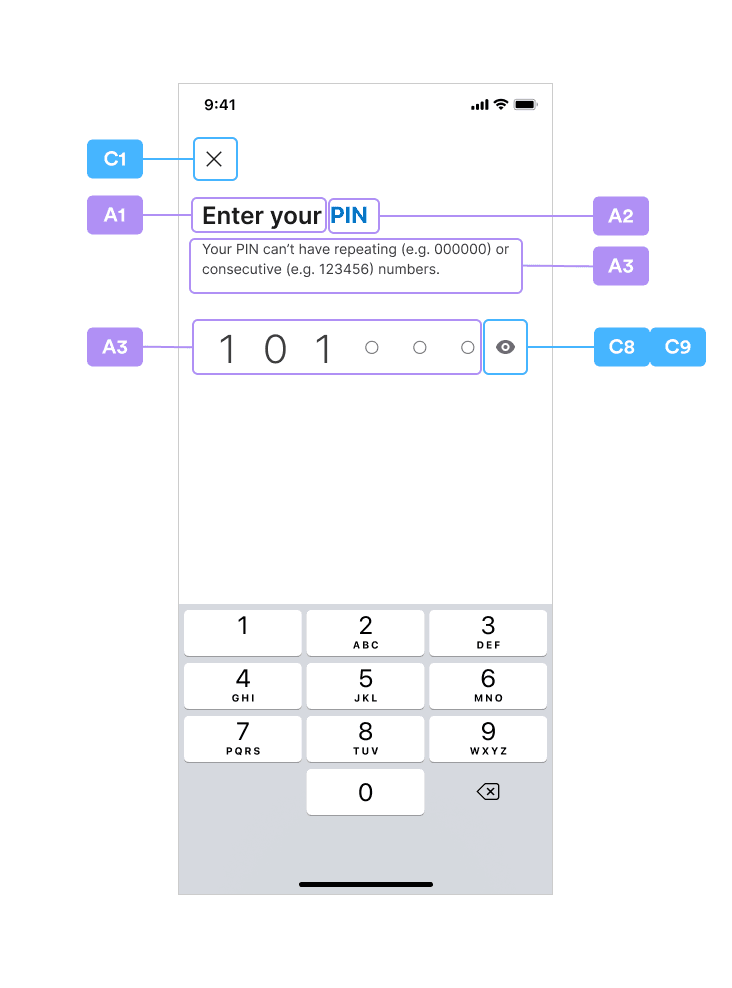

Enter PIN Code

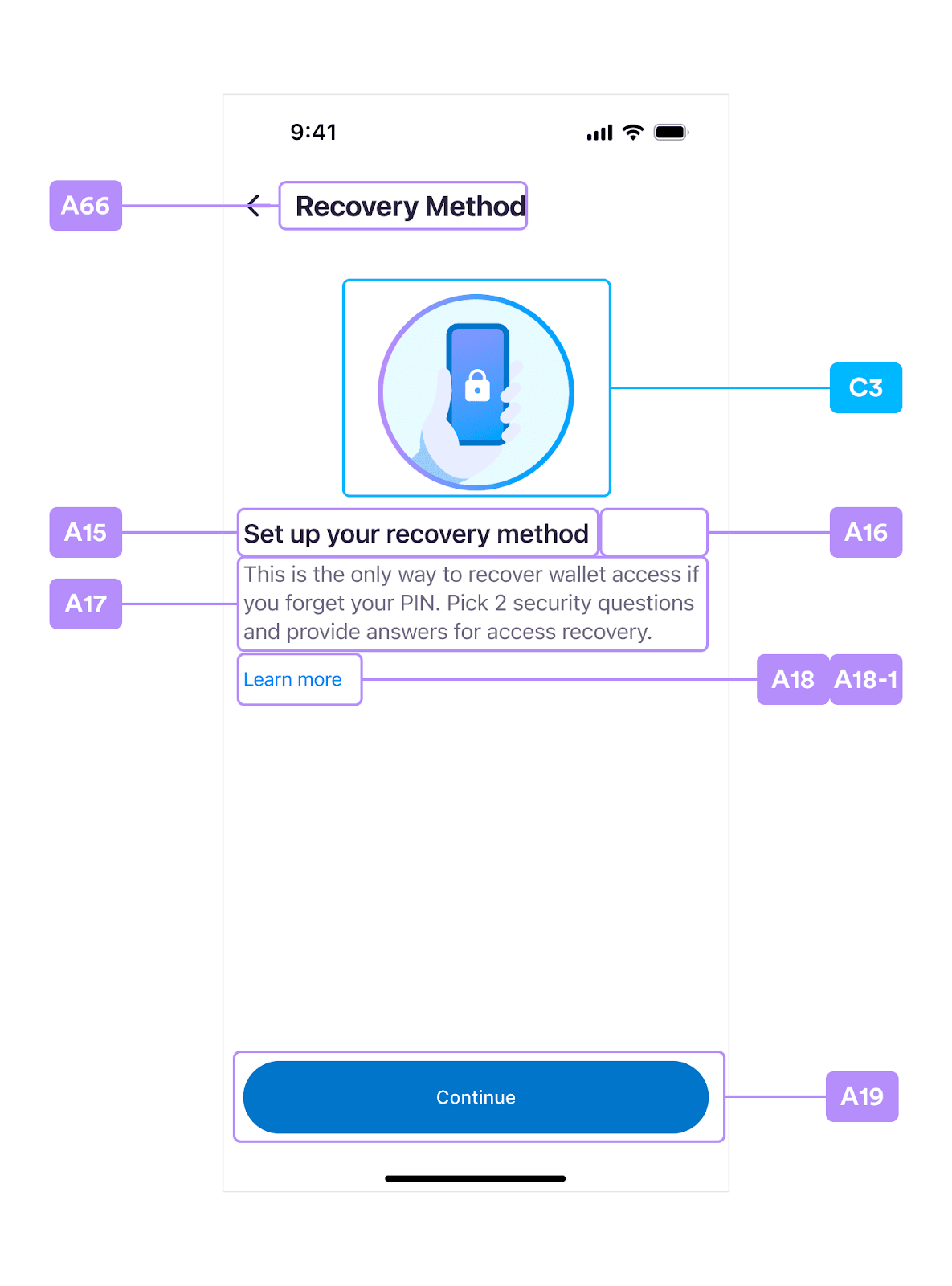

Security Intro

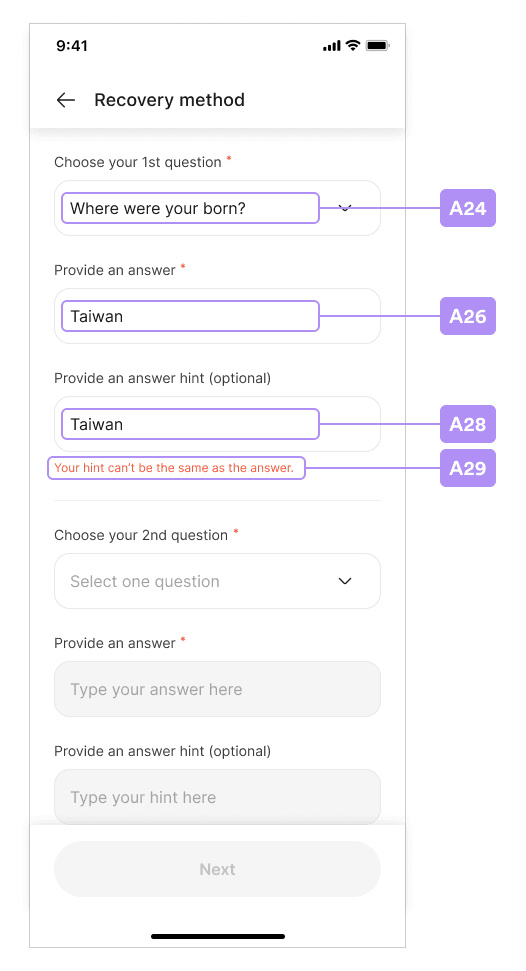

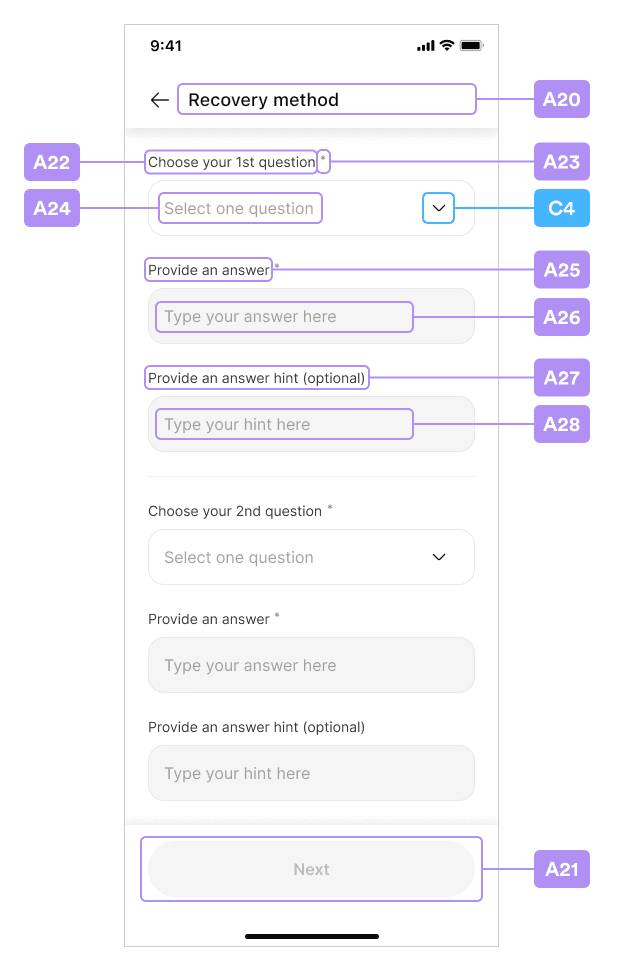

Security Questions

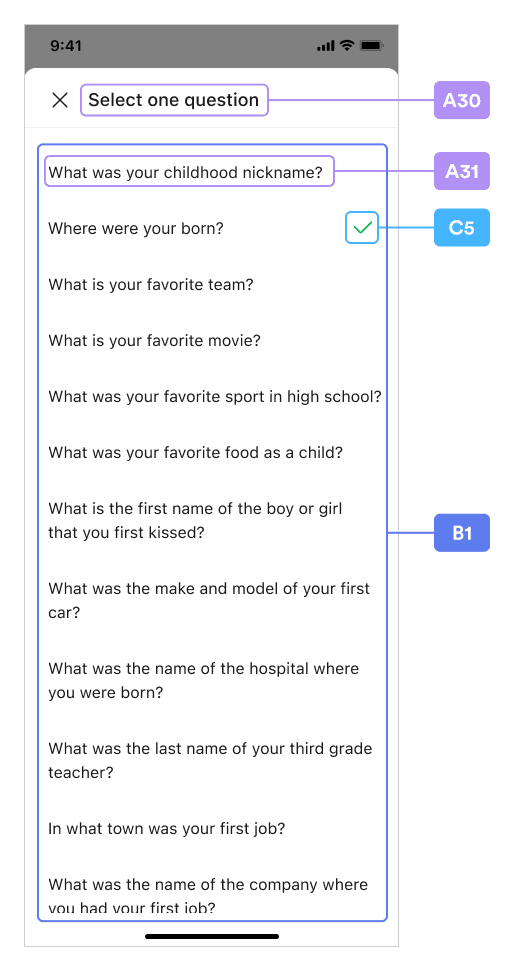

Select Question

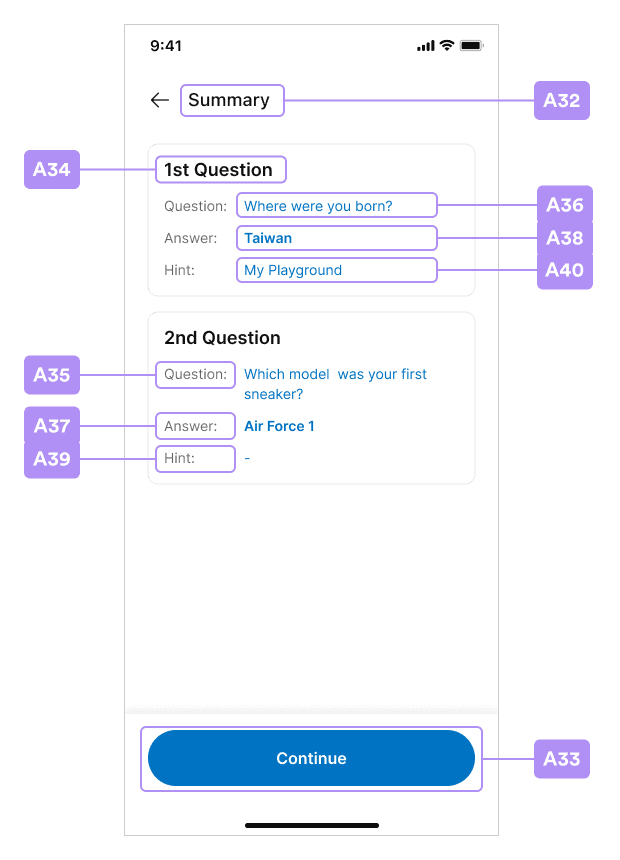

Security Summary

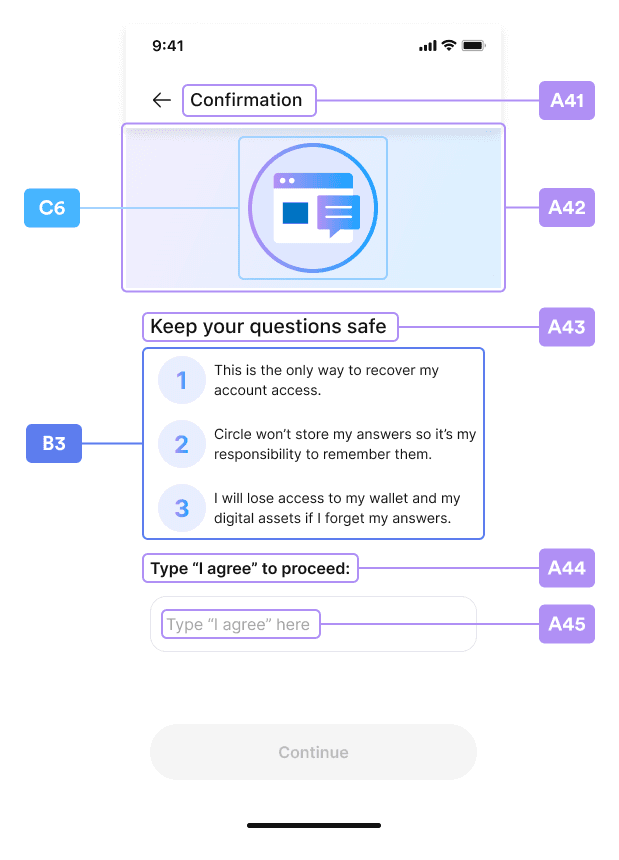

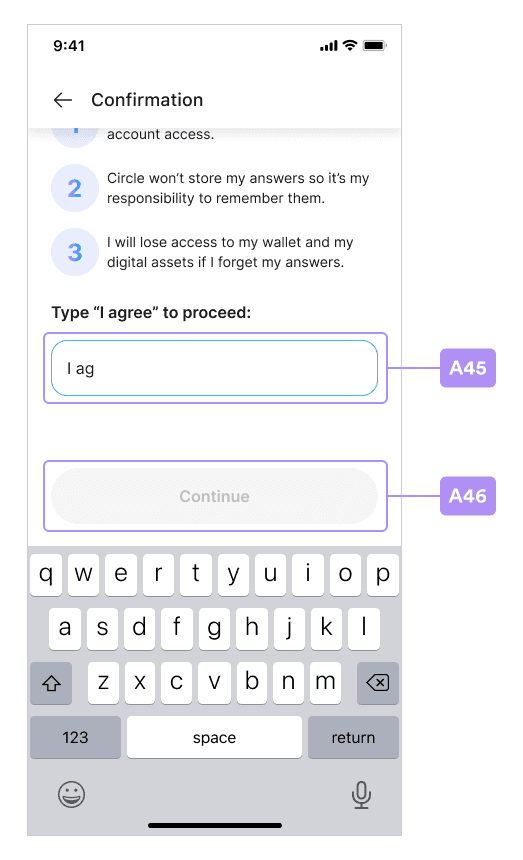

Security Confirm

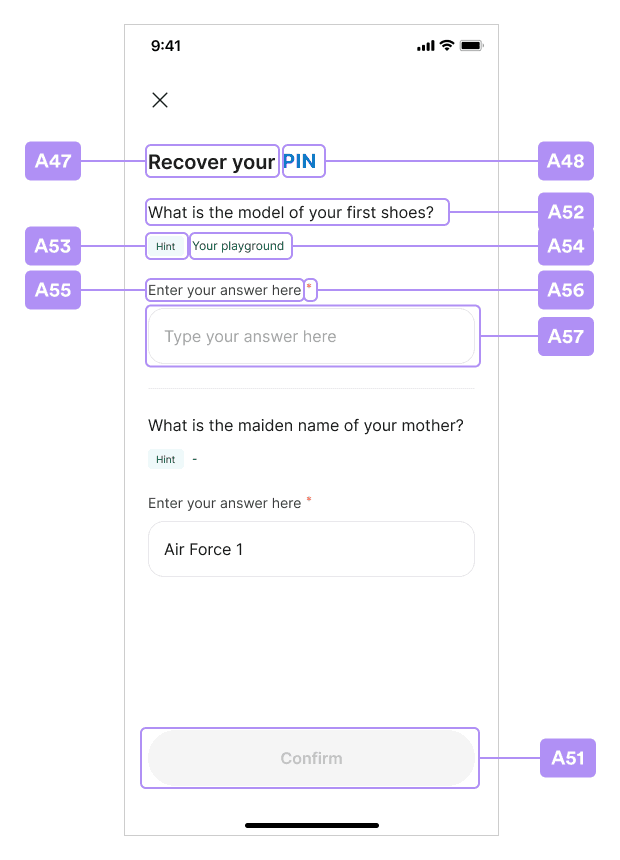

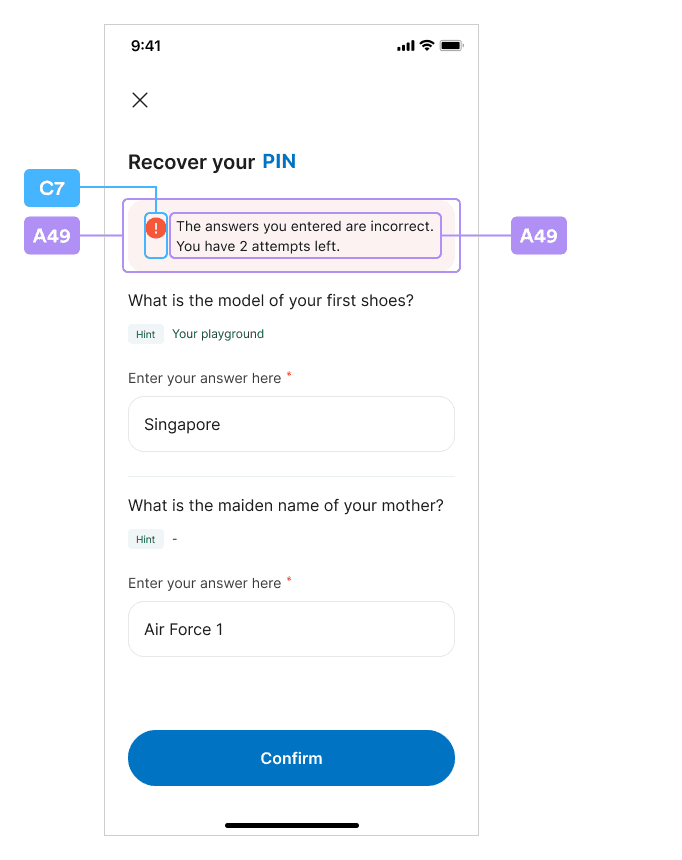

Recover PIN Code

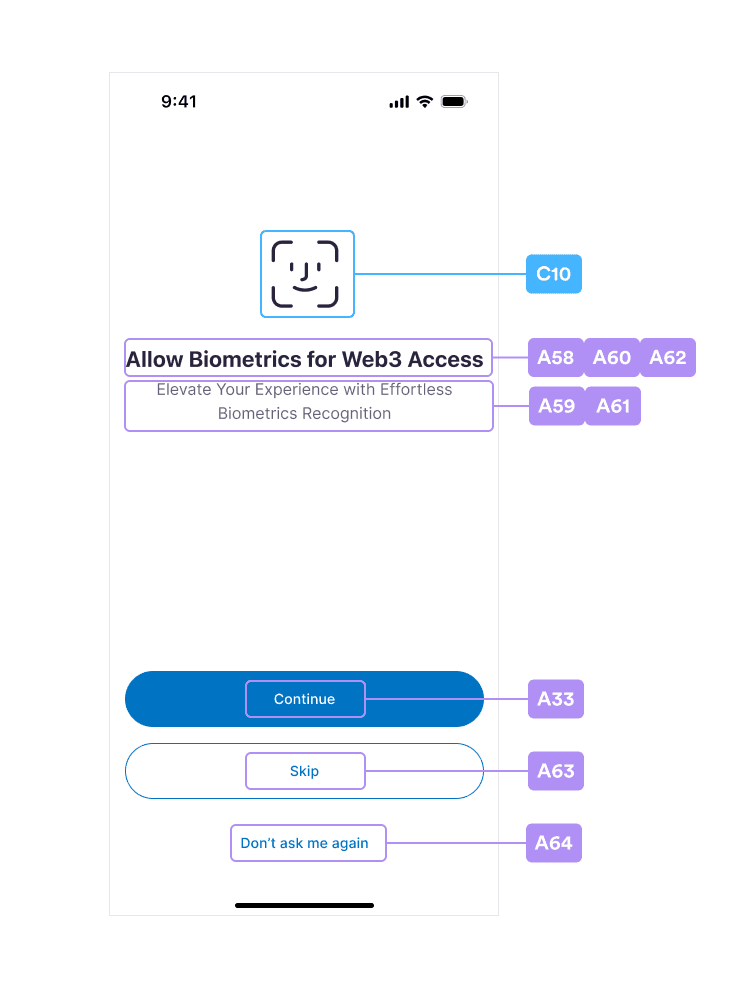

Biometrics Setup

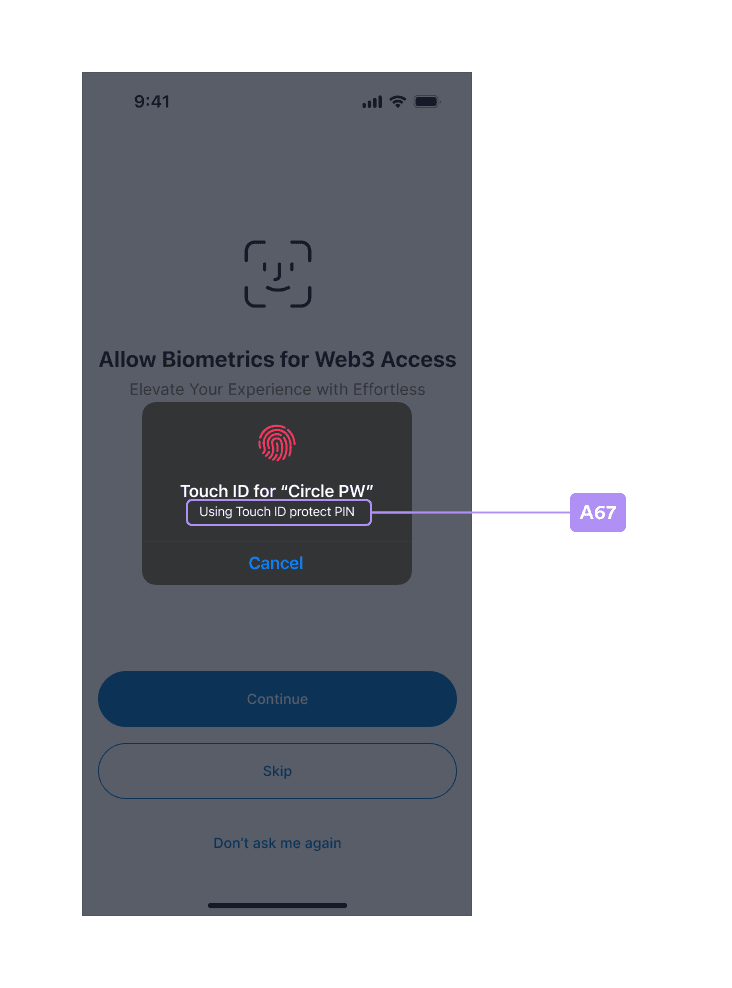

Touch ID Setup

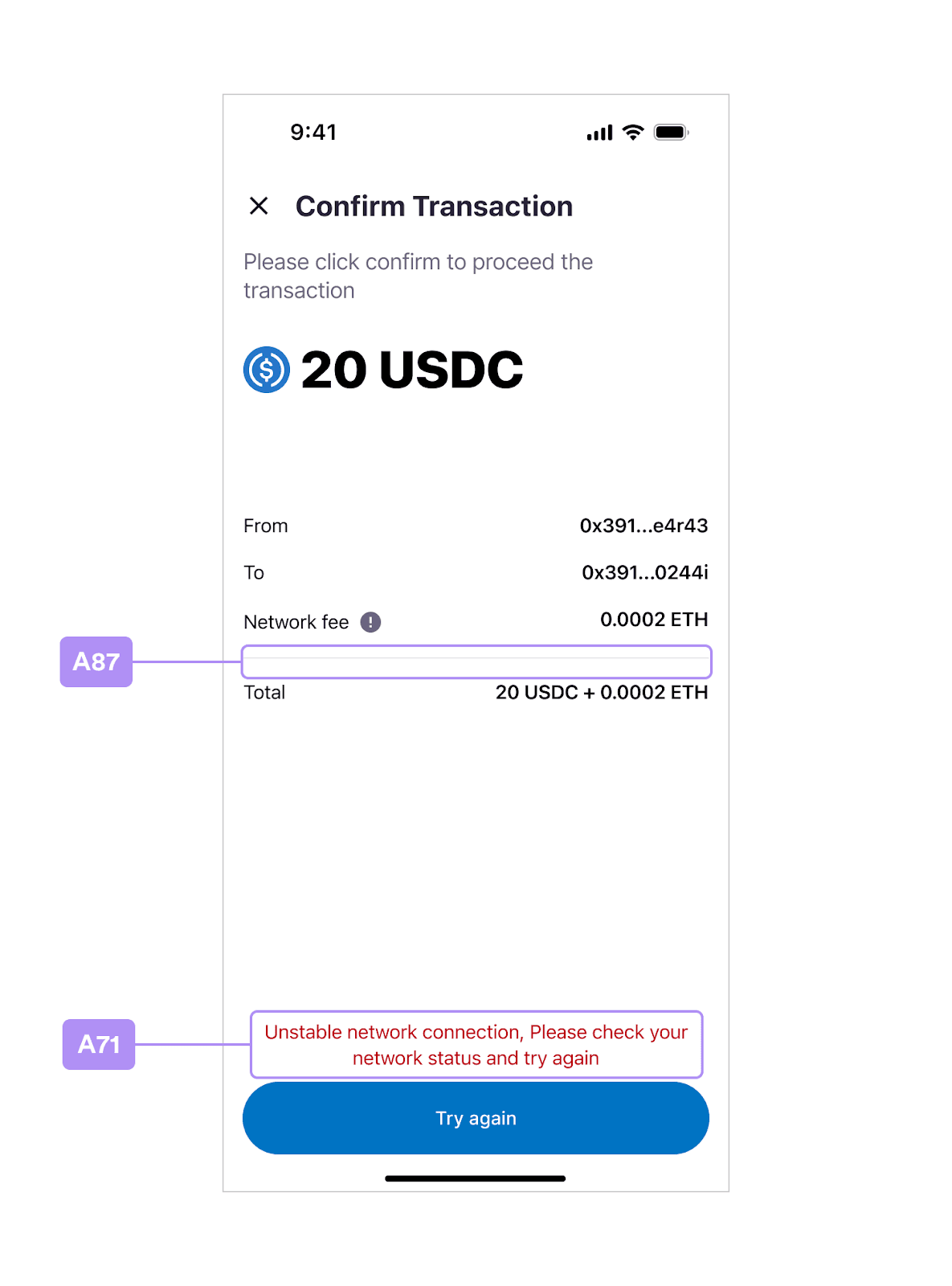

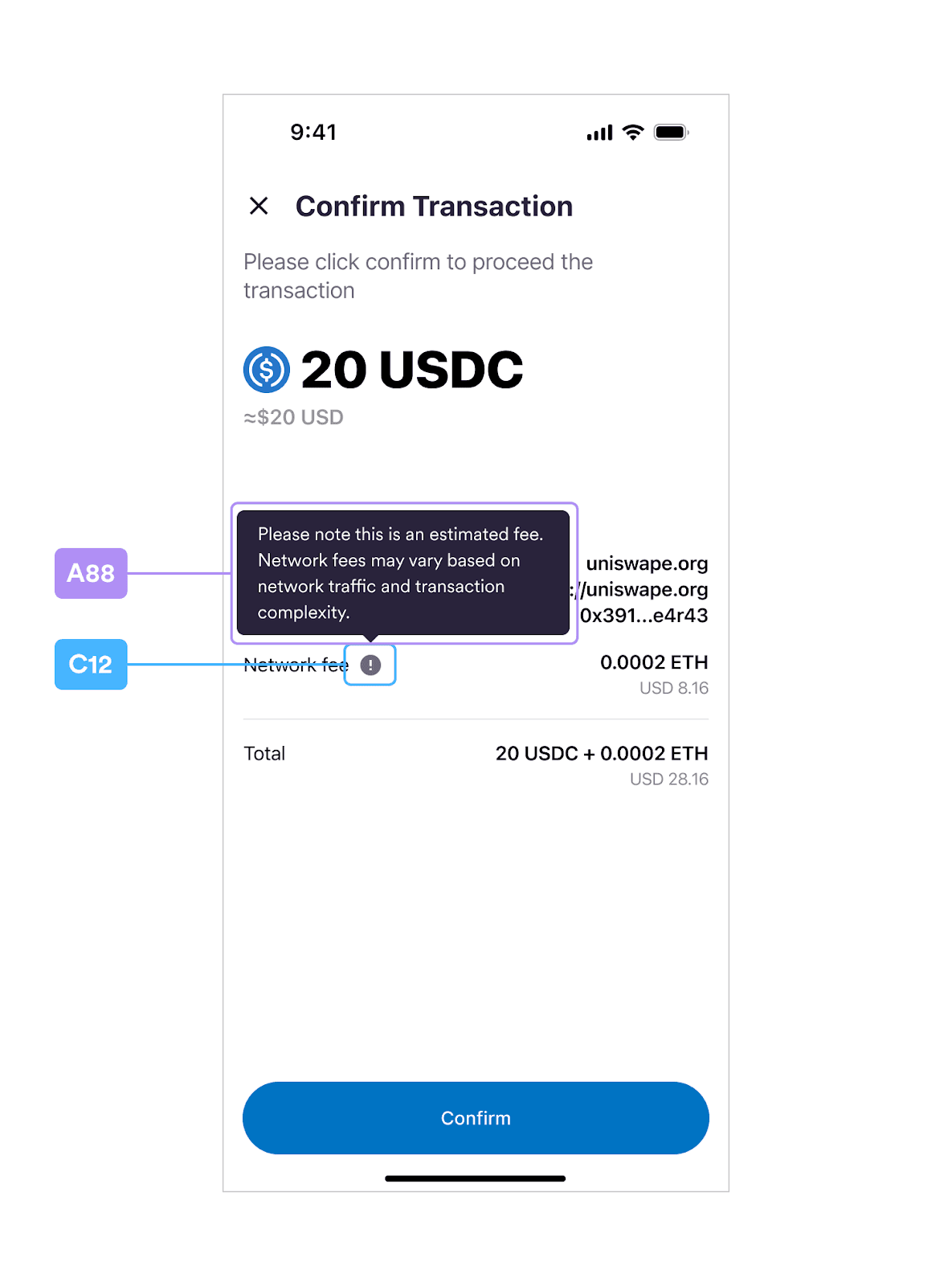

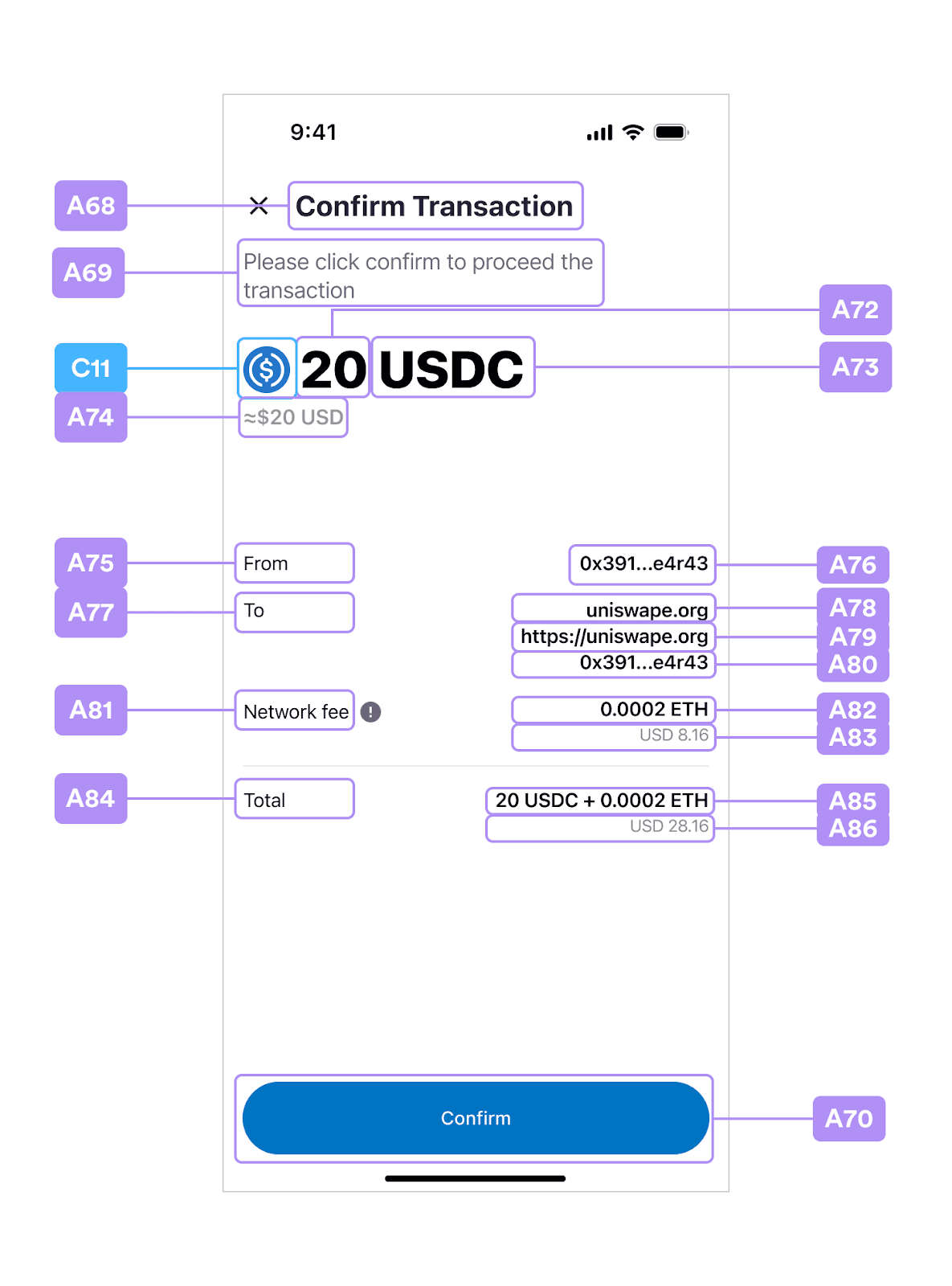

Confirm Transaction

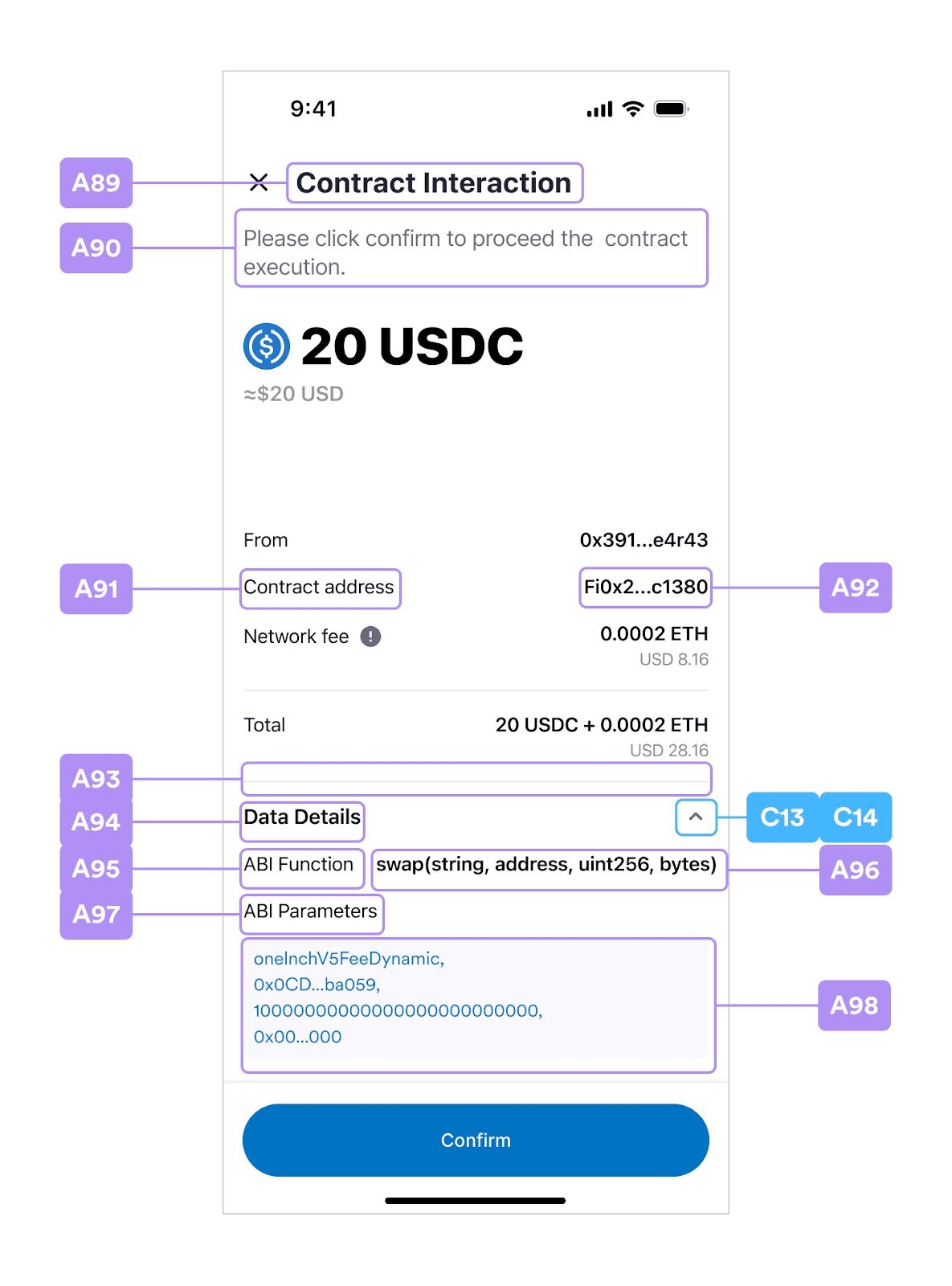

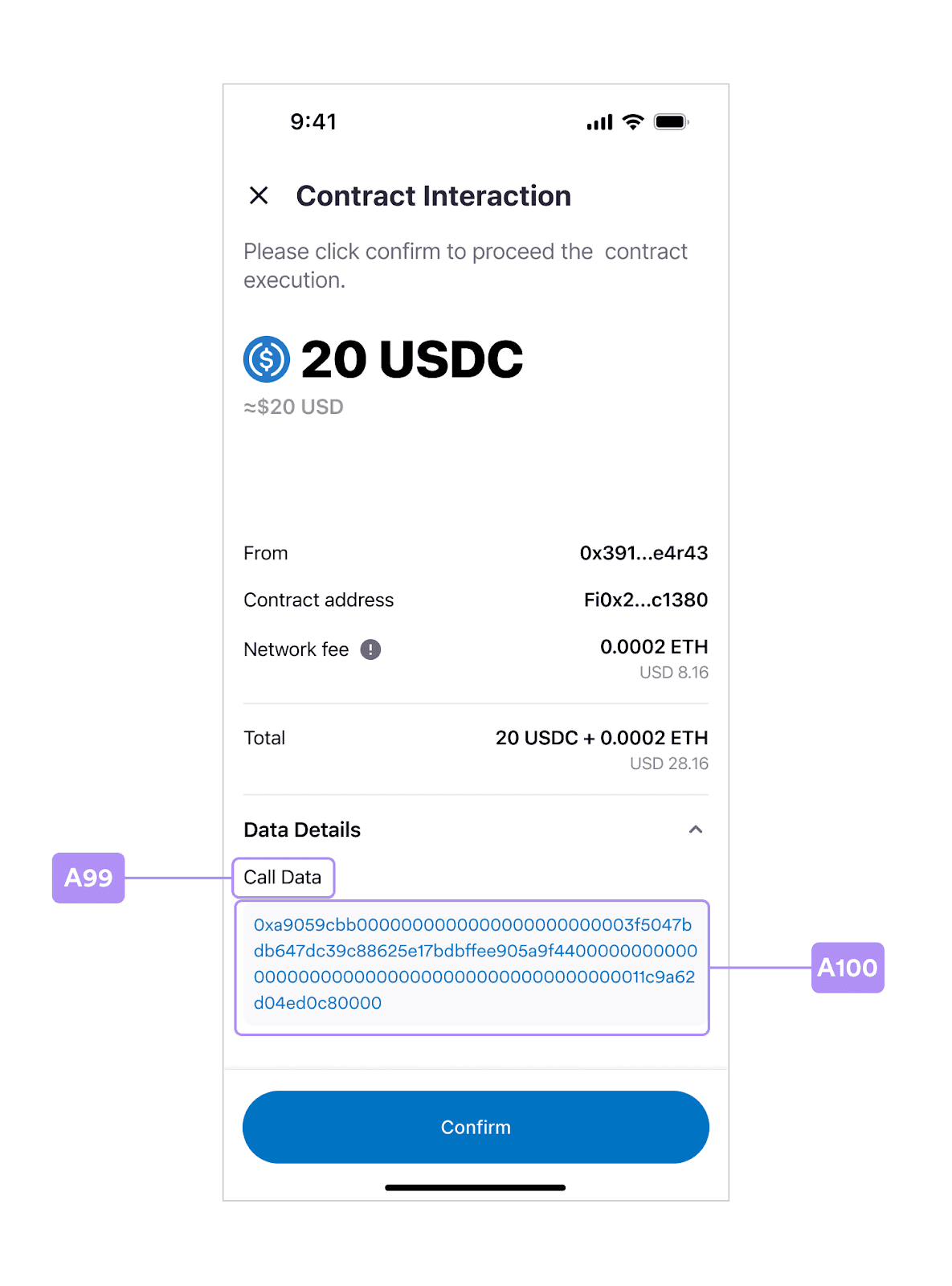

Contract Interaction

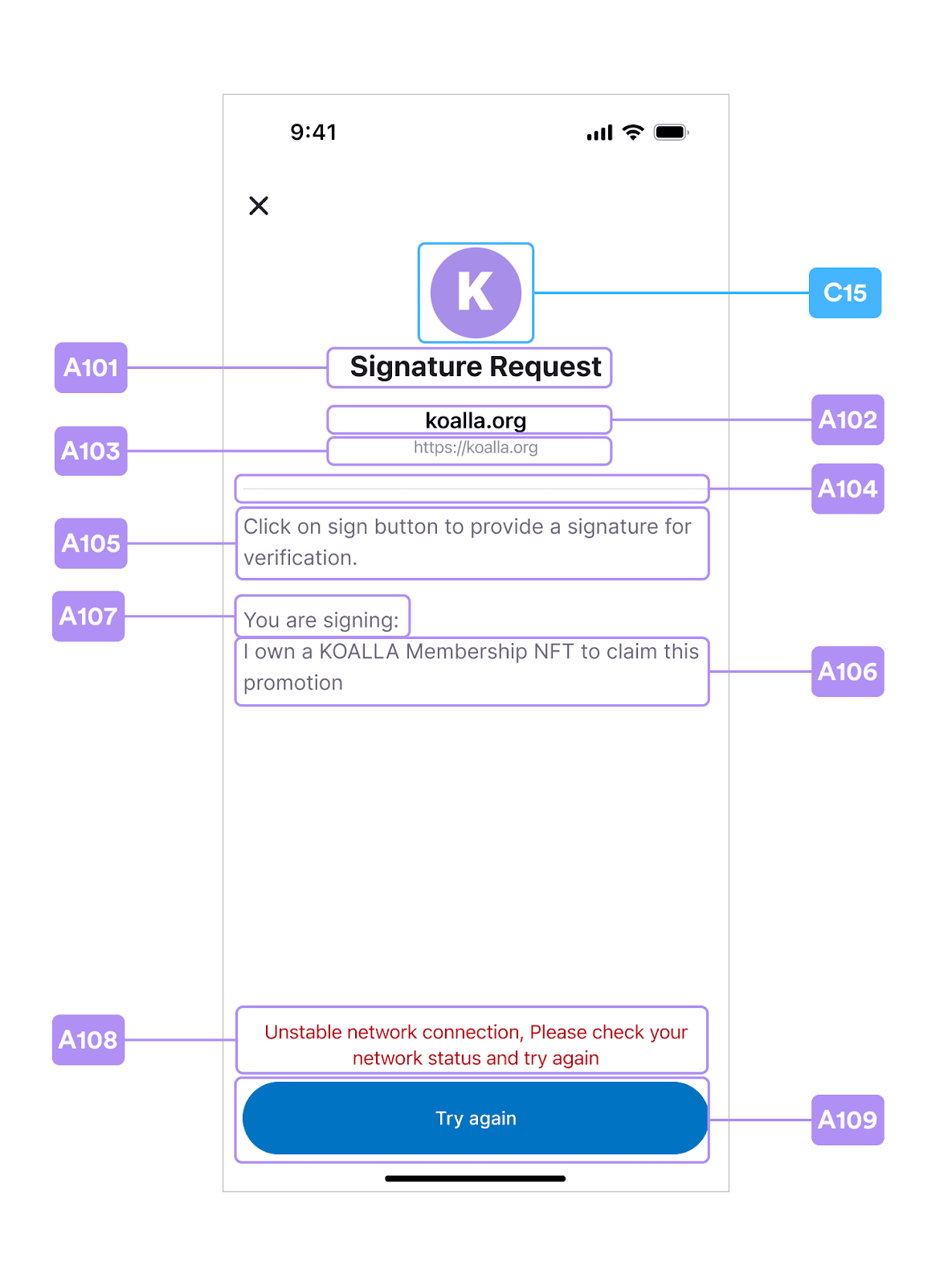

Signature Request

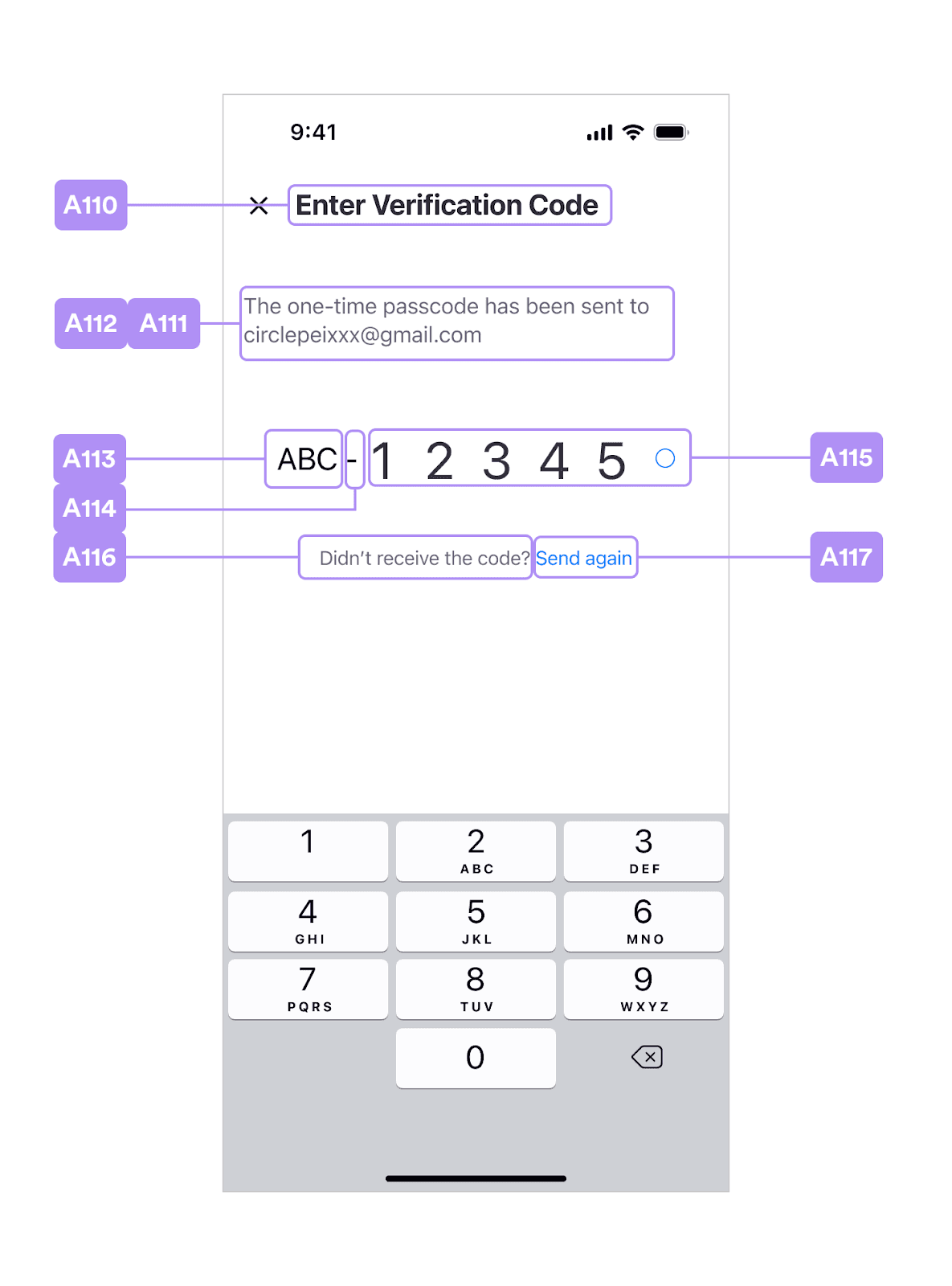

Verify Email OTP

Index Table A

Based on the layouts, table A provides the UI item named in the controller and the keys currently in use. You can get the UIViewController from WalletSdkDelegate and customize the UI items in the run time. Also, you can provide the values in static resources CirclePWLocalizable.strings and CirclePWTheme.json for customization layouts in build time.

 Programmatic CustomizationStatic Resources

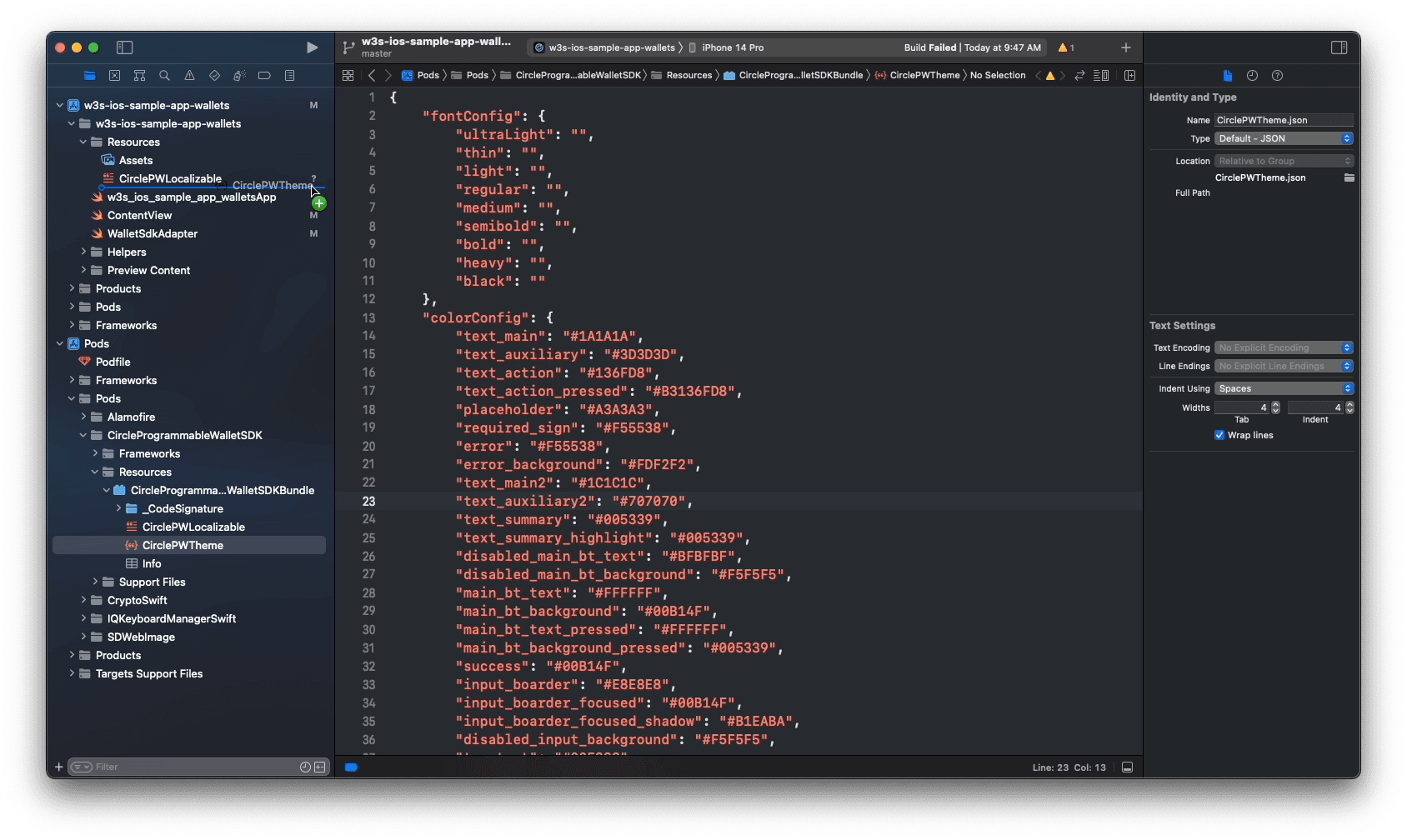

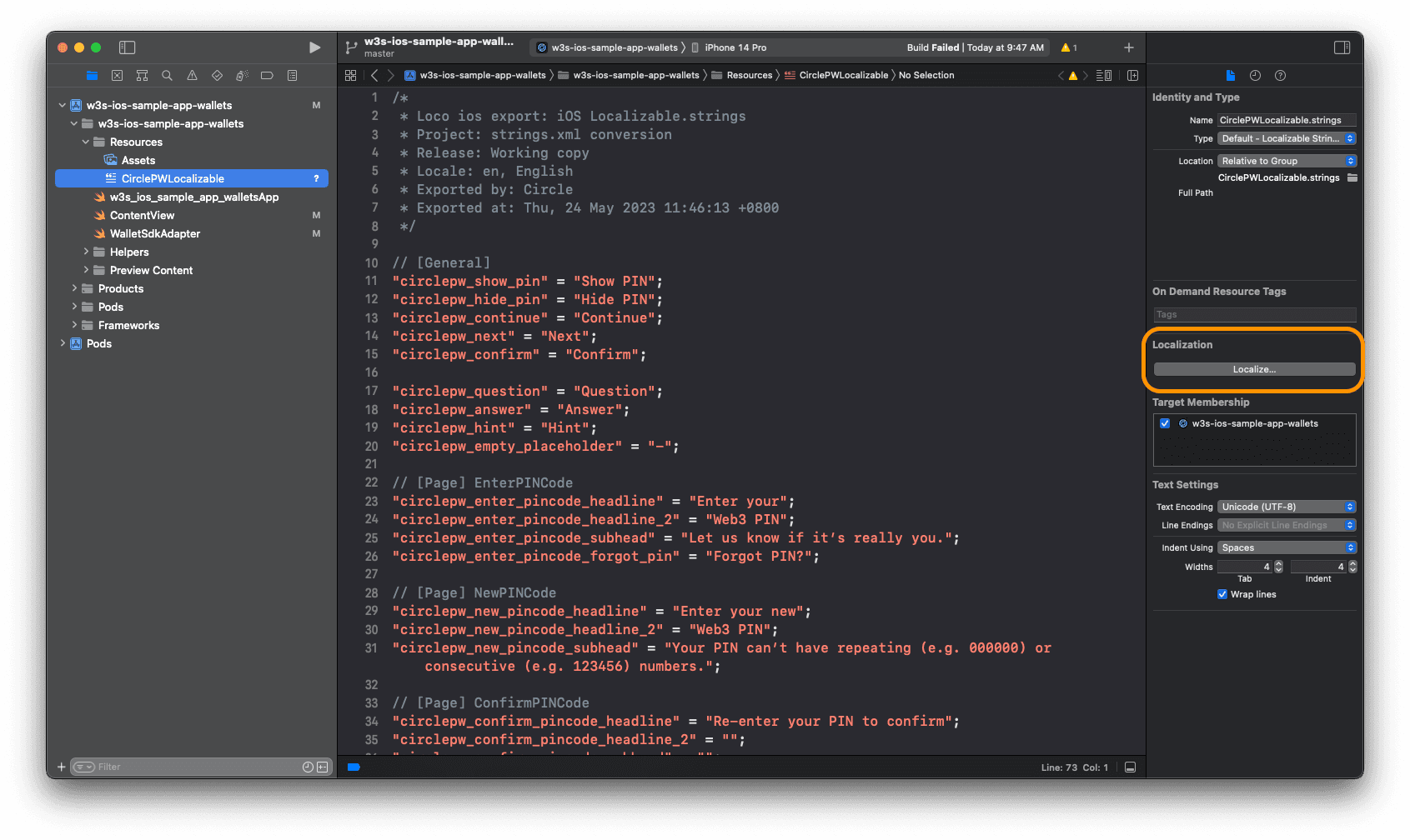

    CirclePWLocalizable.stringsCirclePWTheme.json
#ControllerItemNote fontcolor
A1NewPINCodeViewControllertitleLabel1-circlepw_new_pincode_headlinesemiboldtext_main
A2''titleLabel2-circlepw_new_pincode_headline_2boldtitle_gradients
A3''subtitleLabel-circlepw_new_pincode_subheadregulartext_auxiliary
A4BasePINInputViewController-dots and texts will be generated dynamically-lightpin_dot_base / pin_dot_base_border / pin_dot_activated / pin_dot_focused / pin_digit_activated / success / error
A5''-shows ApiError.displayString-regularerror
A8ConfirmPINCodeViewControllertitleLabel1-circlepw_confirm_pincode_headlinesemiboldtext_main
A9''titleLabel2-circlepw_confirm_pincode_headline_2boldtitle_gradients
A10''subtitleLabel-circlepw_confirm_pincode_subheadregulartext_auxiliary
A11EnterPINCodeViewControllertitleLabel1-circlepw_enter_pincode_headlinesemiboldtext_main
A12''titleLabel2-circlepw_enter_pincode_headline_2boldtitle_gradients
A13''subtitleLabel-circlepw_enter_pincode_subheadregulartext_auxiliary
A14''forgotPINButton-circlepw_enter_pincode_forgot_pinsemiboldtext_action / text_action_pressed
A65 '' biometricsButton-circlepw_enter_pincode_use_biometricssemiboldtext_action / text_action_pressed
A15SecurityIntrosViewControllertitleLabel1-circlepw_security_intros_headlinesemiboldtext_main
A16''titleLabel2-circlepw_security_intros_headline_2boldtitle_gradients
A17''introDescLabel-circlepw_security_intros_descriptionregulartext_auxiliary2
A18''introLinkButton-circlepw_security_intros_linkregulartext_action / text_action_pressed
A18-1''introLinkcustom your url string---
A19''continueButtontextcirclepw_continuesemiboldmain_bt_text / main_bt_text_pressed / main_bt_text_disabled
''''background--main_bt_background / main_bt_background_pressed / main_bt_background_disabled
A20SecurityQuestionsViewControllerbaseNaviTitleLabel-circlepw_security_questions_titlemediumtext_main
A21''nextButtontextcirclepw_nextsemiboldmain_bt_text / main_bt_text_pressed / main_bt_text_disabled
''background--main_bt_background / main_bt_background_pressed / main_bt_background_disabled
A22SecurityQuestionTableViewCellquestionTitleLabel-circlepw_security_questions_question_headerregulartext_auxiliary
A23''questionMarkLabel-circlepw_security_questions_required_markregularerror
A24''-placeholdercirclepw_security_questions_question_placeholderregulartext_placeholder
''-selected question-regulartext_main
A25''answerTitleLabel-circlepw_security_questions_answer_headerregulartext_auxiliary
A26''-placeholdercirclepw_security_questions_answer_placeholderregulartext_placeholder
''-input text-regulartext_main
''-view--input_background_disabled / input_border / input_border_focused
A27''hintTitleLabel-circlepw_security_questions_answer_hint_headerregulartext_auxiliary
A28''-placeholdercirclepw_security_questions_answer_hint_placeholderregulartext_placeholder
''-input text-regulartext_main
''-view--input_background_disabled / input_border / input_border_focused
A29''hintWarningLabelApiError(.hintsMatchAnswers)-regularerror
A30SelectQuestionViewControllerbaseNaviTitleLabel-circlepw_select_question_titlemediumtext_main
A31SelectQuestionTableViewCelltitleLabelquestion list-regulartext_main
A32SecuritySummaryViewControllerbaseNaviTitleLabel-circlepw_security_summary_titlemediumtext_main
A33''continueButtontextcirclepw_continuesemiboldmain_bt_text / main_bt_text_pressed / main_bt_text_disabled
''background--main_bt_background / main_bt_background_pressed / main_bt_background_disabled
A34SecuritySummaryTableViewCelltitleLabel-{ordinal} + circlepw_questionsemiboldtext_main2
A35''questionTitleLabel-circlepw_question + “:”regulartext_auxiliary2
A36''---regulartext_summary
A37''answerTitleLabel-circlepw_answer + “:“regulartext_auxiliary2
A38''---semiboldtext_summary_highlight
A39''hintTitleLabel-circlepw_hint + “:“regulartext_auxiliary2
A40''--circlepw_empty_placeholderregulartext_summary

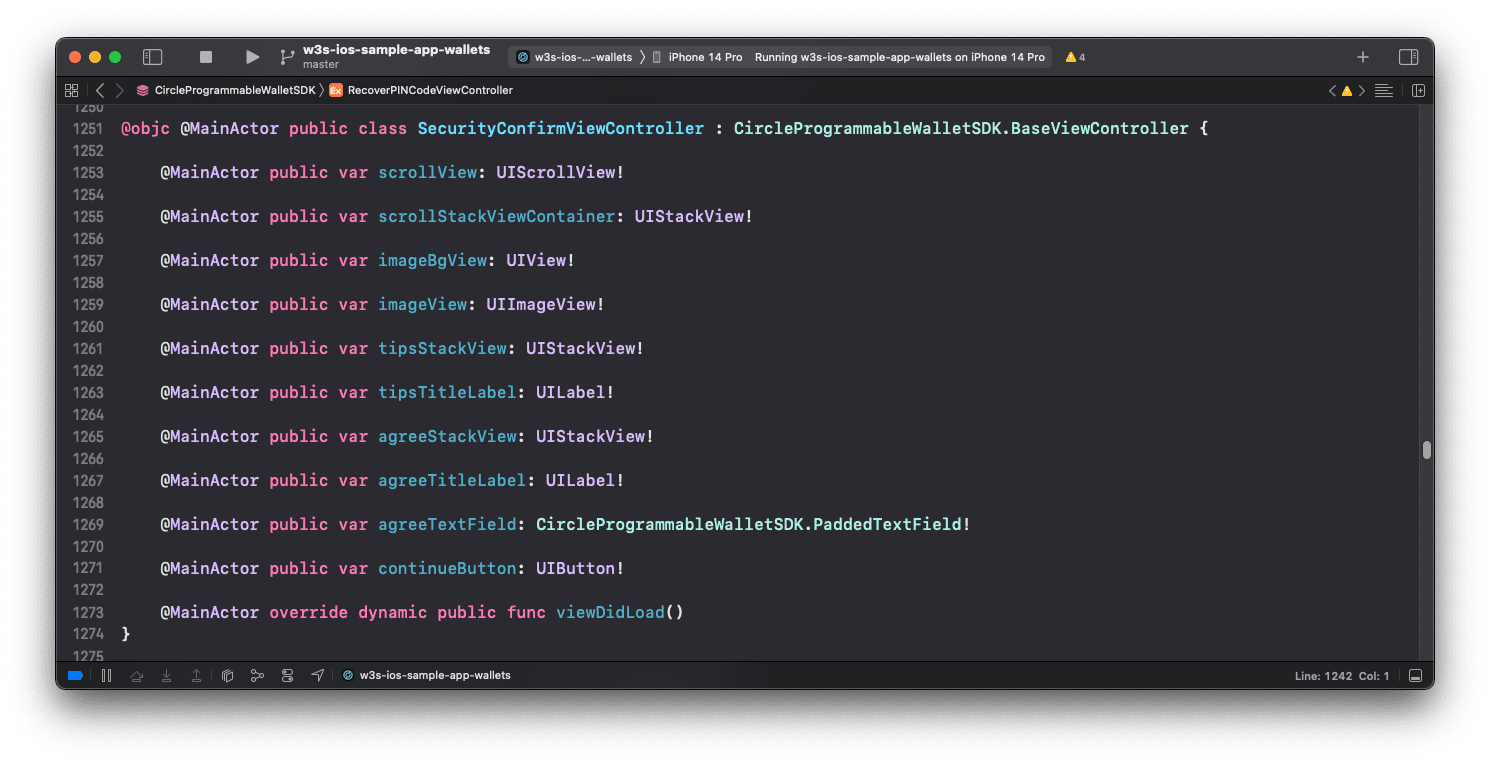

A41SecurityConfirmViewControllerbaseNaviTitleLabel-circlepw_security_confirm_titlemediumtext_main
A42''imageBgView---security_confirm_main_bg
A43''tipsTitleLabel-circlepw_security_confirm_headlinemediumtext_main
A44''agreeTitleLabel-circlepw_security_confirm_input_headlinesemiboldtext_main2
A45''agreeTextFieldplaceholdercirclepw_security_confirm_input_placeholderregulartext_placeholder
''''input text-regulartext_main2
''''view--input_background_disabled / input_border / input_border_focused
A46''continueButtontextcirclepw_continuesemiboldmain_bt_text / main_bt_text_pressed / main_bt_text_disabled
''''background--main_bt_background / main_bt_background_pressed / main_bt_background_disabled
A47RecoverPINCodeViewControllertitleLabel1-circlepw_recover_pincode_headlinesemiboldtext_main
A48''titleLabel2-circlepw_recover_pincode_headline_2boldtitle_gradients
A49''-shows ApiError.displayString-regulartext_main
A50''errorMessageViewbackground--error_background
A51''confirmButtontextcirclepw_confirmsemiboldmain_bt_text / main_bt_text_pressed / main_bt_text_disabled
''''background--main_bt_background / main_bt_background_pressed / main_bt_background_disabled
A52RecoverPINCodeTableViewCell---regulartext_main2
A53''hintTitleLabeltextcirclepw_hintregularrecover_pin_hint_title
''''background--recover_pin_hint_title_bg
A54''-placeholdercirclepw_empty_placeholderregularrecover_pin_hint
A55''answerTitleLabel-circlepw_recover_pincode_answer_input_headerregulartext_auxiliary
A56''answerMarkLabel-circlepw_security_questions_required_markregularerror
A57''-placeholdercirclepw_recover_pincode_answer_input_placeholderregulartext_placeholder
''-input text-regulartext_main
''-view--input_background_disabled / input_border / input_border_focused
A58BiometricsPromptViewControllerpromptTitleLabelSet up biometrics first in the processcirclepw_pin_biometrics_allow_titleboldtext_prompt
A60''''After first setting up biometrics processcirclepw_pin_biometrics_failed_title
A62''''Update after failure to use biometric PINcirclepw_pin_biometrics_update_title
A59''promptSubtitleLabelSet up biometrics in the processcirclepw_pin_biometrics_allow_subtitleregulartext_prompt2
A61''''Update after failure to use biometric PINcirclepw_pin_biometrics_update_subtitle
A63''skipButtontextcirclepw_skipsemiboldsecond_bt_text
''''background--second_bt_border / second_bt_background / second_bt_background_pressed
A64''dontAskButtontextcirclepw_pin_biometrics_disablesemiboldplain_bt_text
''''background--plain_bt_background / plain_bt_background_pressed
A67---circlepw_pin_touch_id_dialog_subtitle--
A68BaseRequestViewControllerbaseNaviTitleLabel-circlepw_transaction_request_titlemediumtext_main
A69''descriptionLabel-circlepw_transaction_request_subtitleregulartext_auxiliary
A70''confirmButtontextcirclepw_confirm / circlepw_try_againsemiboldmain_bt_text / main_bt_text_pressed / main_bt_text_disabled
''''background--main_bt_background / main_bt_background_pressed / main_bt_background_disabled
A71''errorLabelshows ApiError.displayString-regularerror
A72TransactionRequestViewControlleramountLabel--heavytext_prompt
A73''currencyLabel-circlepw_transaction_request_main_currencyheavytext_prompt
A74''txFiatValueLabelIf it has no value, it will be hiddencirclepw_transaction_request_exchange_amountsemiboldtext_exchange
A75''fromTitleLabelIf the fromLabel has no value, it will be hiddencirclepw_transaction_request_from_labelregulartext_prompt
A76''fromLabel-circlepw_transaction_request_fromsemiboldtext_prompt
A77''toTitleLabel-circlepw_transaction_request_to_labelregulartext_prompt
A78''toContractNameLabelIf it has no value, it will be hiddencirclepw_transaction_request_to_contract_namesemiboldtext_prompt
A79''toContractURLLabelIf it has no value, it will be hiddencirclepw_transaction_request_to_contract_urlsemiboldtext_prompt
A80''toLabel--semiboldtext_prompt
A81''feeTitleLabelIf the feeLabel has no value, it will be hiddencirclepw_transaction_request_network_fee_labelregulartext_prompt
A82''feeLabel-circlepw_transaction_request_network_feesemiboldtext_prompt
A83''feeFiatValueLabel-circlepw_transaction_request_exchange_network_feeregulartext_exchange
A84''totalTitleLabelIf the totalLabel has no value, it will be hiddencirclepw_transaction_request_total_labelregulartext_prompt
A85''totalLabel--semiboldtext_prompt
A86''totalFiatValueLabelIf it or the totalLabel has no value, it will be hiddencirclepw_transaction_request_exchange_total_valueregulartext_exchange
A87''dividerView1---divider
A88FeeTipViewControllerdescriptionLabel-circlepw_transaction_request_fee_tipregulartip_text
''backgroundColor---tip_background
A89ContractRequestViewControllerbaseNaviTitleLabel-circlepw_contract_interaction_titlemediumtext_main
A90''descriptionLabel-circlepw_contract_interaction_subtitleregulartext_auxiliary
A91''contractAddressTitleLabel-circlepw_contract_interaction_contract_address_labelregulartext_prompt
A92''contractAddressLabel--semiboldtext_prompt
A93''dividerView2---divider
A94''dataDetailsLabel-circlepw_contract_interaction_data_detailssemiboldtext_prompt
A95''abiFunctionTitleLabel-circlepw_contract_interaction_abi_function_labelregulartext_prompt
A96''abiFunctionLabel--semiboldtext_prompt
A97''abiParameterTitleLabel-circlepw_contract_interaction_abi_parameter_labelregulartext_prompt
A98''abiParameterLabeltext-regulartext_interactive
''''background--interactive_background
A99''callDataTitleLabel-circlepw_contract_interaction_call_data_labelregulartext_prompt
A100''callDataLabeltext-regulartext_interactive
''''background--interactive_background
A101SignatureRequestViewControllertitleLabel-circlepw_signature_request_titlesemiboldtext_main
A102''contractNameLabelIf it has no value, it will be hiddencirclepw_signature_request_contract_namesemiboldtext_prompt
A103''contractURLLabelIf it has no value, it will be hiddencirclepw_signature_request_contract_nameregulartext_sign_url
A104''dividerView---divider
A105''subtitleLabel-circlepw_signature_request_subtitleregulartext_auxiliary
A106''descriptionLabel-circlepw_signature_request_descriptionregulartext_auxiliary
A107''messageLabel--regulartext_auxiliary
A108''errorLabelshows ApiError.displayString-regularerror
A109''confirmButtontextcirclepw_confirm / circlepw_try_againsemiboldmain_bt_text / main_bt_text_pressed / main_bt_text_disabled
''''background--main_bt_background / main_bt_background_pressed / main_bt_background_disabled
A110EmailOTPViewControllerbaseNaviTitleLabel-circlepw_email_otp_titlemediumtext_main
A111''descriptionLabel-circlepw_email_otp_descriptionregulartext_auxiliary
A112''-circlepw_email_otp_email
A113''otpHeadLabel--regulartext_prompt
A114''otpDashLabel-circlepw_email_otp_dashregulartext_prompt
A115''-texts will be generated dynamically-lightpin_dot_base / pin_dot_base_border / pin_dot_focused / pin_digit_activated / success / error
A116''sendAgainHintLabel-circlepw_email_otp_send_again_hintregulartext_auxiliary
A117''sendAgainButton-circlepw_email_otp_send_againregulartext_action / text_action_pressed
A118''errorMessageLabelshows ApiError.displayString-regularerror

Index Table B

By confirming the WalletSdkLayoutProvider, you can custom layout from Table-B dynamically. See the Sample Code.

#WalletSdkLayoutProviderNote
B1func securityQuestions() -> [SecurityQuestion]Set security question list
B2func securityQuestionsRequiredCount() -> IntSet security question required count (default is 2)
B3func securityConfirmItems() -> [SecurityConfirmItem]Set security confirm item list
B4func displayDateFormat() -> StringSet the date format for display date strings. (Default is "yyyy-MM-dd")
-func imageStore() -> ImageStoreSet local and remote images (more details in Table-C)
-func themeFont() -> ThemeConfig.ThemeFont?Set theme font programmatically- Provide the ThemeFont structure by code. - This method will override the font setups in CirclePWTheme.json file. -

Index Table C

 Used in WalletSdkLayoutProviderUsed in WalletSdkDelegate
#ImageStore.Img (Enum)ControllerItem
C1naviClose--
C2naviBack--
C3securityIntroMainSecurityIntrosViewControllerintroImageView
C4dropdownArrowSecurityQuestionTableViewCellquestionTrailingButton
C5selectCheckMarkSelectQuestionTableViewCellcheckmarkImage
C6securityConfirmMainSecurityConfirmViewControllerimageView
C7errorInfoRecoverPINCodeViewControllererrorImageView
C8showPinBasePINInputViewController
(NewPIN/ConfirmPIN/EnterPIN)
showPINButton (normal state)
C9hidePinBasePINInputViewController
(NewPIN/ConfirmPIN/EnterPIN)
showPINButton (selected state)
C10biometricsAllowMainBiometricsPromptViewControllerimageView
C11transactionTokenIconTransactionRequestViewControllertokenSymbol
C12networkFeeTipIconTransactionRequestViewControllerfeeTipIcon
C13showLessDetailArrowContractRequestViewControllershowLessMoreDetailButton
C14showMoreDetailArrowContractRequestViewControllershowLessMoreDetailButton
C15requestIconSignatureRequestViewControllerrequestIcon
  • Use the ImageStore.Img (Enum) column to customize with the WalletSdkLayoutProvider:
Swift
func imageStore() -> ImageStore {
    let local: [ImageStore.Img: UIImage] = [
        .naviBack: UIImage(named: "ic_navi_back")!,
        .naviClose: UIImage(named: "ic_navi_close")!,
        .selectCheckMark: UIImage(named: "ic_checkmark")!,
        .dropdownArrow: UIImage(named: "ic_trailing_down")!,
        .errorInfo: UIImage(named: "ic_warning_alt")!,
        .securityIntroMain: UIImage(named: "img_security_intro")!,
        .securityConfirmMain: UIImage(named: "img_driver_blog")!,
        .biometricsAllowMain: UIImage(named: "ic_biometrics")!,
        .hidePin: UIImage(named: "eye_closed")!,
        .showPin: UIImage(named: "eye_open")!,
        .transactionTokenIcon: UIImage(named: "BTC")!,
        .networkFeeTipIcon: UIImage(named: "BTC")!,
        .showLessDetailArrow: UIImage(named: "chevron-up")!,
        .showMoreDetailArrow: UIImage(named: "chevron-down")!,
        .requestIcon: UIImage(named: "dApp_icon")!,
    ]

    let remote: [ImageStore.Img: URL] = [
        .securityIntroMain: URL(string: "https://www.circle.com/hs-fs/hubfs/Sundaes/810/global-payments-810x810.png")!,
        .securityConfirmMain: URL(string: "https://www.circle.com/hs-fs/hubfs/Sundaes/810/Trust-810x810.png")!,
    ]

    return ImageStore(local: local, remote: remote)
}
  • If you set both local and remote images, the remote image will present after the image loads, and the local image will be set as the placeholder image.
  • The remote image formats supported include those from the Apple system (JPEG, PNG, TIFF, BMP, etc.), GIF, and APNG animated images.
  • The remote image formats unsupported for new image formats include HEIC, BPG, AVIF, and vector formats such as PDF and SVG.
  • The Controller and Item column shows where the images are used.
    Refer to the UI items If you have special customizations with WalletSdkDelegate (not recommended)

Static Resources

This section describes how to customize the UI for iOS statically.

Assets

Because the CircleProgrammableWalletSDK does not contain any image resources for the SDK; you must provide the icon images from either local assets or remote URLs.

CirclePWLocalizable.strings

Setup

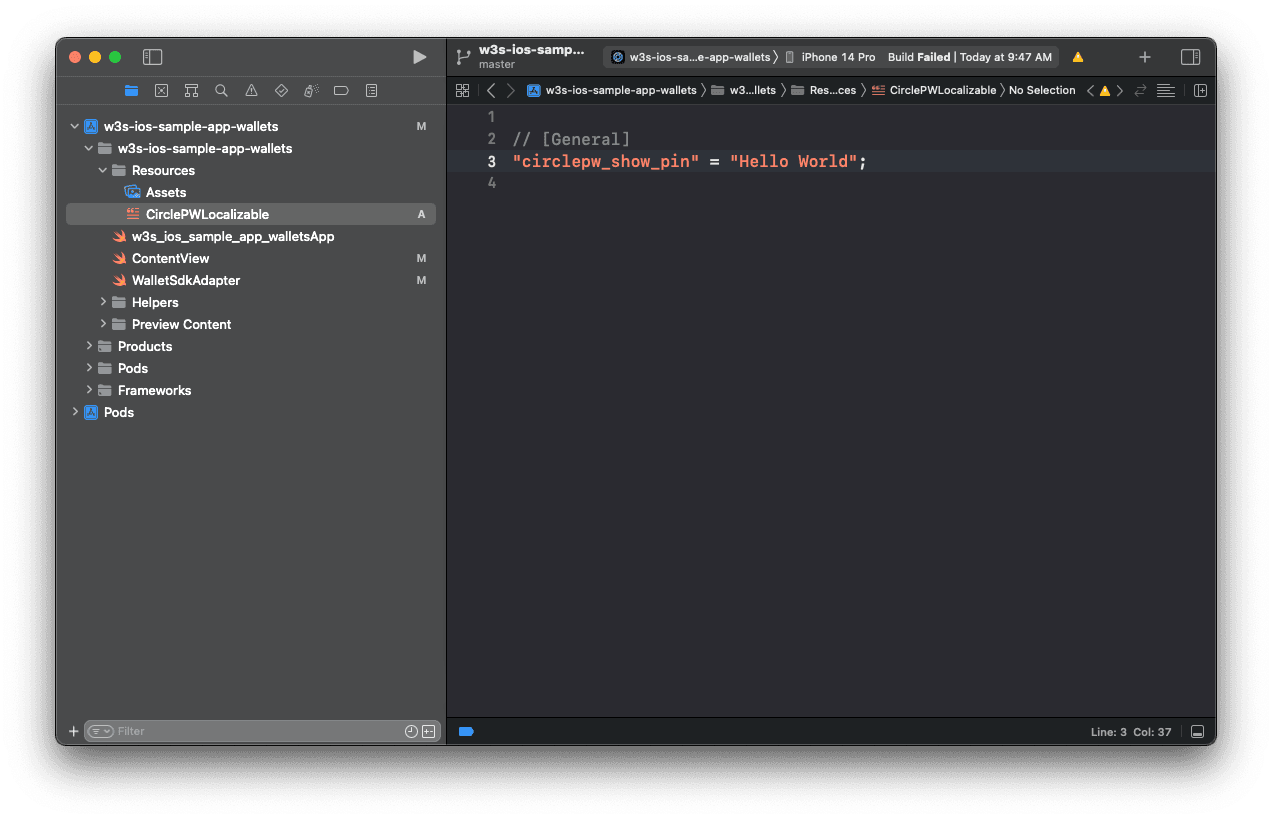

  1. Create a file CirclePWLocalizable.strings in your main bundle.
  2. Provide your strings. Partial override is supported.
  1. Localization is supported. For more information, see Localization | Apple Developer Documentation.

Example CirclePWLocalizable.strings

Swift
/*
 * Loco ios export: iOS Localizable.strings
 * Project: strings.xml conversion
 * Release: Working copy
 * Locale: en, English
 * Exported by: Circle
 * Exported at: Tue, 27 Jun 2023 23:35:22 +0800
 */

// [General]
"circlepw_continue" = "Continue";
"circlepw_next" = "Next";
"circlepw_confirm" = "Confirm";
"circlepw_skip" = "Skip";
"circlepw_sign" = "Sign";
"circlepw_try_again" = "Try Again";

"circlepw_question" = "Question";
"circlepw_answer" = "Answer";
"circlepw_hint" = "Hint";
"circlepw_empty_placeholder" = "-";

// [Page] EnterPINCode
"circlepw_enter_pincode_headline" = "Enter your";
"circlepw_enter_pincode_headline_2" = "Web3 PIN";
"circlepw_enter_pincode_subhead" = "Let us know if it’s really you.";
"circlepw_enter_pincode_forgot_pin" = "Forgot PIN?";

// [Page] NewPINCode
"circlepw_new_pincode_headline" = "Enter your new";
"circlepw_new_pincode_headline_2" = "Web3 PIN";
"circlepw_new_pincode_subhead" = "Your PIN can’t have repeating (e.g. 000000) or consecutive (e.g. 123456) numbers.";

// [Page] ConfirmPINCode
"circlepw_confirm_pincode_headline" = "Re-enter your PIN to confirm";
"circlepw_confirm_pincode_headline_2" = "";
"circlepw_confirm_pincode_subhead" = "";

// [Page] SecurityIntros
"circlepw_security_intros_headline" = "Set up your";
"circlepw_security_intros_headline_2" = "Recovery Method";
"circlepw_security_intros_description" = "This is the only way to recover wallet access if you forget your PIN. Pick 2 security questions and provide answers for access recovery.";
"circlepw_security_intros_link" = "Learn more";

// [Page] SecurityQuestions
"circlepw_security_questions_title" = "Recovery method";
"circlepw_security_questions_question_header" = "Choose your %@ question";
"circlepw_security_questions_question_placeholder" = "Select one question";
"circlepw_security_questions_required_mark" = "*";
"circlepw_security_questions_answer_header" = "Provide an answer";
"circlepw_security_questions_answer_placeholder" = "Type your answer here";
"circlepw_security_questions_answer_hint_header" = "Provide an answer hint (optional)";
"circlepw_security_questions_answer_hint_placeholder" = "Type your hint here";

// [Page] SelectQuestion
"circlepw_select_question_title" = "Select one question";

// [Page] SecuritySummary
"circlepw_security_summary_title" = "Summary";

// [Page] SecurityConfirm
"circlepw_security_confirm_title" = "Confirmation";
"circlepw_security_confirm_headline" = "Keep your questions safe";
"circlepw_security_confirm_input_headline" = "Type “I agree” to proceed:";
"circlepw_security_confirm_input_placeholder" = "Type “I agree” here";
"circlepw_security_confirm_input_match" = "I agree";

// [Page] RecoverPINCode
"circlepw_recover_pincode_headline" = "Recover your";
"circlepw_recover_pincode_headline_2" = "Web3 PIN";
"circlepw_recover_pincode_subhead" = "Please enter the answer of the security questions provided below.";
"circlepw_recover_pincode_answer_input_header" = "Enter your answer here";
"circlepw_recover_pincode_answer_input_placeholder" = "Type your answer here";

// [Page] BiometricsPrompt
"circlepw_pin_biometrics_allow_title" = "Allow Biometrics for Web3 Access";
"circlepw_pin_biometrics_allow_subtitle" = "Elevate Your Experience with Effortless Biometrics";
"circlepw_pin_biometrics_failed_title" = "Failed Biometrics for Web3 Access";
"circlepw_pin_biometrics_update_title" = "Update Biometrics for Web3 Access";
"circlepw_pin_biometrics_update_subtitle" = "Please update your biometrics";
"circlepw_pin_biometrics_disable" = "Don't ask me again";
"circlepw_pin_touch_id_dialog_subtitle" = "Using Touch ID protect PIN";

// [Page] EmailOTP
"circlepw_email_otp_title" = "Enter verification code";
"circlepw_email_otp_description" = "The one-time passcode has been sent to";
"circlepw_email_otp_email" = "your email";
"circlepw_email_otp_dash" = "-";
"circlepw_email_otp_send_again_hint" = "Didn't receive the code?";
"circlepw_email_otp_send_again" = "Send again";

// [Page] SignatureRequest
"circlepw_signature_request_title" = "Signature Request";
"circlepw_signature_request_subtitle" = "Click on sign button to provide a signature for verification";
"circlepw_signature_request_contract_name" = "";
"circlepw_signature_request_contract_url" = "";
"circlepw_signature_request_description" = "You are signing:";

// [Page] TransactionRequest
"circlepw_transaction_request_title" = "Confirm Transaction";
"circlepw_transaction_request_subtitle" = "Please click confirm to proceed the transaction";
"circlepw_transaction_request_main_currency" = "";
"circlepw_transaction_request_exchange_amount" = "";
"circlepw_transaction_request_from_label" = "From";
"circlepw_transaction_request_from" = "";
"circlepw_transaction_request_to_label" = "To";
"circlepw_transaction_request_to_contract_name" = "";
"circlepw_transaction_request_to_contract_url" = "";
"circlepw_transaction_request_network_fee_label" = "Est. Network Fee";
"circlepw_transaction_request_network_fee" = "";
"circlepw_transaction_request_exchange_network_fee" = "";
"circlepw_transaction_request_total_label" = "Total";
"circlepw_transaction_request_exchange_total_value" = "";

// [View] FeeTip
"circlepw_transaction_request_fee_tip" = "Please note this is an estimated fee. Network fees may vary based on network traffic and transaction complexity.";

// [Page] RawTransactionRequest
"circlepw_transaction_request_raw_tx_description" = "Transaction details:";

// [Page] ContractRequest
"circlepw_contract_interaction_title" = "Contract Interaction";
"circlepw_contract_interaction_subtitle" = "Please click confirm to proceed the  contract execution";
"circlepw_contract_interaction_contract_address_label" = "Contract address";
"circlepw_contract_interaction_data_details" = "Data Details";
"circlepw_contract_interaction_abi_function_label" = "ABI Function";
"circlepw_contract_interaction_abi_parameter_label" = "ABI Parameters";
"circlepw_contract_interaction_call_data_label" = "Call Data";

CirclePWTheme.json

Setup

  • Copy the file CirclePWTheme.json into your main bundle. You can use Cmd + drag and drop.
  • Make sure you have selected the Target Membership.

Example: CirclePWTheme.json

JSON
{
  "font": {
    "ultraLight": "",
    "thin": "",
    "light": "",
    "regular": "CustomFont-Regular",
    "medium": "CustomFont-Medium",
    "semibold": "",
    "bold": "",
    "heavy": "",
    "black": ""
  },
  "color": {
    "background": "#FFFFFF",
    "divider": "#F0EFEF",
    "success": "#0B9C4A",
    "error": "#F55538",
    "error_background": "#FDF2F2",

    "text_main": "#1A1A1A",
    "text_main2": "#1C1C1C",
    "text_auxiliary": "#3D3D3D",
    "text_auxiliary2": "#707070",
    "text_summary": "#0073C3",
    "text_summary_highlight": "#0073C3",
    "text_placeholder": "#A3A3A3",
    "text_action": "#136FD8",
    "text_action_pressed": "#B3136FD8",
    "text_prompt": "#29233B",
    "text_prompt2": "#6B6580",
    "text_exchange": "#979797",
    "text_interactive": "#0073C3",
    "text_sign_url": "#8E8E93",

    "pin_dot_base": "#FFFFFF",
    "pin_dot_base_border": "#707070",
    "pin_dot_activated": "#3D3D3D",
    "pin_dot_focused": "#0073C3",
    "pin_digit_activated": "#3D3D3D",

    "input_border": "#E8E8E8",
    "input_border_focused": "#46B5FF",
    "input_background_disabled": "#F5F5F5",

    "main_bt_text": "#FFFFFF",
    "main_bt_text_pressed": "#80FFFFFF",
    "main_bt_text_disabled": "#BFBFBF",
    "main_bt_background": "#0073C3",
    "main_bt_background_pressed": "#1AA3FF",
    "main_bt_background_disabled": "#F5F5F5",

    "second_bt_text": "#0073C3",
    "second_bt_border": "#0073C3",
    "second_bt_background": "#FFFFFF",
    "second_bt_background_pressed": "#F1F9FE",

    "plain_bt_text": "#0073C3",
    "plain_bt_background": "#FFFFFF",
    "plain_bt_background_pressed": "#F1F9FE",

    "recover_pin_hint_title": "#3D3652",
    "recover_pin_hint_title_bg": "#E1F2FF",
    "recover_pin_hint": "#0073C3",

    "security_confirm_main_bg": "#E9EEFE",

    "tip_text": "#FFFFFF",
    "tip_background": "#29233B",

    "interactive_background": "#F9F9FC",

    "title_gradients": ["#0073C3", "#0073C3"],
  }
}

Programmatic Customization

To programmatically customize the UI refers to the following documents:

Example Code

Swift
extension WalletSdkAdapter: WalletSdkLayoutProvider {

    func securityQuestions() -> [SecurityQuestion] {
        return [
            SecurityQuestion(title: "What is your childhood nickname?", inputType: .text),
            SecurityQuestion(title: "What is the middle name of your oldest child?", inputType: .text),
            SecurityQuestion(title: "What is your favorite team?", inputType: .text),
            SecurityQuestion(title: "When was your birthday?", inputType: .datePicker),
            SecurityQuestion(title: "When is your marriage anniversary?", inputType: .datePicker),
        ]
    }

    func securityQuestionsRequiredCount() -> Int {
        return 2
    }

    func securityConfirmItems() -> [SecurityConfirmItem] {
        return [
            SecurityConfirmItem(image: UIImage(named: "img_info"),
                                text: "This is the only way to recover my account access."),
            SecurityConfirmItem(image: UIImage(named: "img_claim_success"),
                                text: "Circle won’t store my answers so it’s my responsibility to remember them."),
            SecurityConfirmItem(image: UIImage(named: "img_claim_success"),
                                text: "I will lose access to my wallet and my digital assets if I forget my answers."),
        ]
    }

    func displayDateFormat() -> String {
        return "yyyy/MM/dd"
    }

    func imageStore() -> ImageStore {
        let local: [ImageStore.Img: UIImage] = [
            .naviBack: UIImage(named: "ic_navi_back")!,
            .naviClose: UIImage(named: "ic_navi_close")!,
            .selectCheckMark: UIImage(named: "ic_checkmark")!,
            .dropdownArrow: UIImage(named: "ic_trailing_down")!,
            .errorInfo: UIImage(named: "ic_warning_alt")!,
            .securityIntroMain: UIImage(named: "img_security_intro")!,
            .securityConfirmMain: UIImage(named: "img_driver_blog")!
        ]

        let remote: [ImageStore.Img: URL] = [
            .securityIntroMain: URL(string: "https://www.circle.com/hs-fs/hubfs/Sundaes/810/global-payments-810x810.png")!,
            .securityConfirmMain: URL(string: "https://www.circle.com/hs-fs/hubfs/Sundaes/810/Trust-810x810.png")!,
        ]

        return ImageStore(local: local, remote: remote)
    }

    func themeFont() -> ThemeConfig.ThemeFont? {
        return ThemeConfig.ThemeFont(
            ultraLight: nil,
            thin: nil,
            light: "CustomFont-Light",
            regular: "CustomFont-Regular",
            medium: "CustomFont-Medium",
            semibold: "CustomFont-SemiBold",
            bold: "CustomFont-Bold",
            heavy: nil,
            black: nil
        )
    }
}

WalletSdkDelegate

By modifying the WalletSdkDelegate, you can get the current view controller and control the UI parameters in the controller at run time.

Swift
public protocol WalletSdkDelegate: AnyObject {

    /// Tells the delegate that the SDK is about to be presented in the controller.
    /// You can customize the layout as you wish dynamically.
    ///
    /// - Parameter controller: The UIViewController to be presented
    func walletSdk(willPresentController controller: UIViewController)

    ...
}

Example Code

Swift
extension WalletSdkAdapter: WalletSdkDelegate {

    func walletSdk(willPresentController controller: UIViewController) {
        print("willPresentController: \(controller)")

        if let controller = controller as? NewPINCodeViewController {
            controller.titleLabel1.text = "Hello World"
            controller.titleLabel1.textColor = .blue
            controller.titleLabel1.font = .systemFont(ofSize: 28, weight: .black)

        }

        if let controller = controller as? SecurityConfirmViewController {
            controller.imageBgView.backgroundColor = .blue
            controller.imageView.contentMode = .scaleAspectFill
        }
    }

    ...
}

View Public Interface

Use Jump to Definition (Cmd + left click) to see the public interface of the view controller. Change the UI items as you need.

Jump to Definition

Public Interface

ErrorMessenger

 ApiError Interface

Swift
public struct ApiError: Error {

    public let errorCode: ErrorCode

    /// Error string from the SDK
    public let errorString: String

    /// Error string for UI display
    public var displayString: String
}

By modifying the ErrorMessenger, you can customize the ApiError messages. Your customization replaces the default ApiError.displayString for UI usage. You can also manage the localized error message.

Swift
public protocol ErrorMessenger {

    func getErrorString(_ code: ApiError.ErrorCode) -> String?
}


Example Code

Swift
import CircleProgrammableWalletSDK

class MyErrorMessenger: ErrorMessenger {

    func getErrorString(_ code: ApiError.ErrorCode) -> String? {
        switch code {
        case .hintsMatchAnswers:
            return "Your custom error message."

        case .networkError:
            return "Your custom error message."

        default:
            return nil
        }
    }
}

// ============ setErrorMessenger ============

WalletSdk.shared.setErrorMessenger(MyErrorMessenger())

ErrorCode and Messages Table

The following table shows the ApiError.ErrorCode key names and their default values:

ApiError.ErrorCodeDefault Value
unknown(-1)Unknown error
success(0)Success
apiParameterMissing(1)API parameter missing
apiParameterInvalid(2)API parameter invalid
forbidden(3)Forbidden
unauthorized(4)Unauthorized
retry(9)Retry
customerSuspended(10)Customer suspended
pending(11)Pending
invalidSession(12)Invalid session
invalidPartnerId(13)Invalid partner ID
invalidMessage(14)Invalid Message published to a SQS queue.
invalidPhone(15)Invalid phone number %@
walletIdNotFound(156001)<server definition>
tokenIdNotFound(156002)<server definition>
transactionIdNotFound(156003)<server definition>
entityCredentialNotFound(156004)<server definition>
walletSetIdNotFound(156005)<server definition>
userAlreadyExisted(155101)user already existed
userNotFound(155102)user not found
userTokenNotFound(155103)user token not found
userTokenExpired(155104)user token expired
invalidUserToken(155105)invalid user token
userWasInitialized(155106)user was initialized
userHasSetPin(155107)user has set pin
userHasSetSecurityQuestion(155108)user has set security question
userWasDisabled(155109)user was disabled
userDoesNotSetPinYet(155110)user does not set pin yet
userDoesNotSetSecurityQuestionYet(155111)user does not set security questions yet
incorrectUserPin(155112)The PIN you entered is incorrect. You have %@ attempts left.
incorrectDeviceId(155113)incorrect device id
incorrectAppId(155114)app id not found
incorrectSecurityAnswers(155115)The answers you entered are incorrect. You have %@ attempts left.
invalidChallengeId(155116)invalid challenge id
invalidApproveContent(155117)invalid approve content
invalidEncryptionKey(155118)invalid encryption key
userPinLocked(155119)You’ve used up all PIN attempts. Please wait for %@ mins to retry later.
securityAnswersLocked(155120)The answers you entered are incorrect. Please wait for %@ mins to retry again.
walletIsFrozen(155501)Wallet is Frozen
maxWalletLimitReached(155502)Max wallet limit reached
walletSetIdMutuallyExclusive(155503)WalletSetId can not be used together with blockchain and address filter
metadataUnmatched(155504)metadata array length does not match wallet count
userCanceled(155701)User canceled
launchUiFailed(155702)<Launch UI failed reason>
pinCodeNotMatched(155703)The PIN you entered is not the same as the first one.
insecurePinCode(155704)Your PIN can’t have repeating or consecutive numbers.
hintsMatchAnswers(155705)Your hint can’t be the same as the answer.
networkError(155706)Network error
biometricsSettingNotEnabled(155708)Biometrics is disabled
deviceNotSupportBiometrics(155709)System doesn't support biometrics
biometricsKeyPermanentlyInvalidated(155710)(Android only) Failed to decrypt biometrics key
biometricsUserSkip(155711)The user has not enabled biometrics yet
biometricsUserDisableForPin(155712)The user refused to enable biometrics
biometricsUserLockout(155713)(Android only) Too many requests. Try again later.
biometricsUserLockoutPermanent(155714)Too many requests. The biometrics sensor on the device is locked.
biometricsUserNotAllowPermission(155715)Biometrics is not permitted by the user.
biometricsInternalError(155716)Unexpected error for biometrics: %@
invalidUserSecret(155718)User token format is invalid. Please ensure the format of the user token is correct, then perform login and execute the challenge again.
userTokenMismatch(155719)User token and SDK API execute function do not match. Ensure that executeWithUserSecret is for users with SSO/Email auth method and execute is for users with PIN auth method.
socialLoginFailed(155720)Social login is failed. The social provider returns failed during the execution of social login flow. Please refer to the error message for more details.
loginInfoMissing(155721)Login info is missing. Please perform login and execute the challenge again.
walletIdNotFound(156001)The specified wallet does not exist, or is not visible to the caller. Try the request again with a valid wallet ID.
tokenIdNotFound(156002)The specified token does not exist, or is not visible to the caller. Try the request again with a valid token ID.
transactionIdNotFound(156003)The specified transaction does not exist, or is not visible to the caller. Try the request again with a valid transaction ID.
entityCredentialNotFound(156004)Reusing an entity secret ciphertext is not allowed. Please re-encrypt the entity secret to generate a new ciphertext and try again.
walletSetIdNotFound(156005)The specified wallet set does not exist, or is not visible to the caller. Try the request again with a valid wallet set.
Did this page help you?
© 2023-2024 Circle Technology Services, LLC. All rights reserved.
